Table of Figures¶

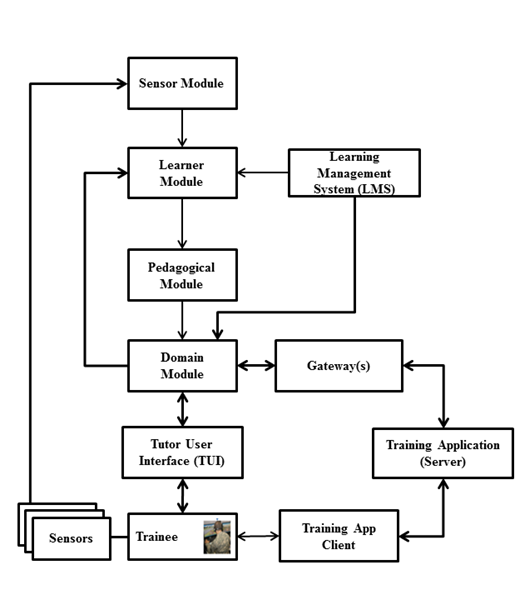

Figure 1: The GIFT architecture diagram shows how the various components of GIFT interact. The arrows depict the flow of messages and interactions.

Figure 2: Message Flow through ActiveMQ

Overview¶

The purpose of the GIFT Interface Control Document (ICD) is to describe the interface, in terms of messaging input and outputs, of each module in the system. It does not attempt to describe the characteristics of each module but merely treat each module as if it were a black box. GIFT developers can use this document to create new modules in replace of existing modules by adhering to the messaging I/O described.

Figure 1: The GIFT architecture diagram shows how the various components of GIFT interact. The arrows depict the flow of messages and interactions.

Modules¶

Messaging Details¶

Each module declares two ActiveMQ queues that are used to receive messages from other GIFT modules; the “Inbox” queue and the Module Queue. The queues are named according to the following convention:
Inbox Queue: <module name>:<ip address>:Inbox
Module Queue: <module name>:<ip address>

The functions of the two queues are described below:

Inbox Queue
The Inbox Queue of a particular module is effectively its messaging address. As such other modules wishing to communicate with a particular module will address messages to the desired module’s Inbox Queue. Conversely, when a module communicates with other modules, it identifies itself using the name of its Inbox Queue.

Module Queue
This is the queue the module listens on to receive incoming messages – effectively it is the Module’s “Outbox”. Messages should not be directly sent to this queue because the Camel component of ActiveMQ will route the message from the Inbox to this queue as well as to other queues for logging and monitoring. An illustration of this process is shown below.

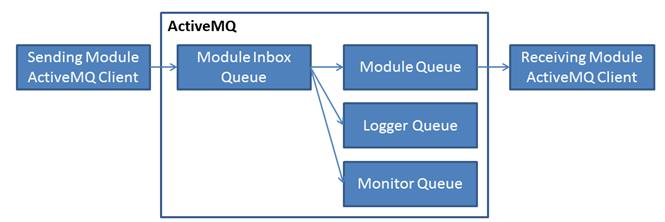

Figure 2: Message Flow through ActiveMQ

Upon receipt of a message, a module can reply, initially, with a:

• ACK message – Indicates that the message was received and successfully decoded.
• NACK message – Indicates that the message was received but was unable to be decoded.
• No message – Nothing is sent for messages read from a Topic or those messages whose header specifies that a reply is not needed (refer to message header attributes for each message type in this document).

Once a message is handled by the recipient module, the module can optionally respond with a reply message to convey additional information. For example, the sender of the LMS Data Request message would expect to receive a LMS Data Reply message which would contain all the LMS data of interest. In addition to specific reply message like the LMS Data Reply, there are two generic reply message types:

• Processed ACK – Signifies that the message was handled successfully.
• ACProcessed NACK – Signifies that the message was not handled successfully.

Currently only a single reply message (ACK and NACK are not considered reply messages here, e.g. LMS Data Reply) should be sent for each received message. Additional replies will be ignored by the recipient.

User Management System (UMS) Module¶

Details¶

The primary function of the UMS module is to manage a user session. It is responsible for storing information about the user such as biographical details, in addition to maintaining information about domain sessions. It does not, however, keep scoring records of user’s training history. That is handled by the LMS. The UMS also contains the message logger which is responsible for logging all messages sent on a single ActiveMQ network.

Subscriptions¶

Domain Discovery

• For logging purposes

Pedagogical Discovery

• For logging purposes

Tutor Discovery

• For logging purposes

Learner Discovery

• For logging purposes

Sensor Discovery

• For logging purposes

Gateway Discovery

• For logging purposes

LMS Discovery

• For logging purposes

UMS Discovery

Logger Queue

Messages¶

Module Status

Send
To: UMS Discovery
Reply With: Nothing
Description: Notify all subscribers of the UMS module status

Receive
From: LMS Discovery, Pedagogical Discovery, Learner Discovery, Tutor Discovery, Gateway Discovery, Domain Discovery, Sensor Discovery
Reply With: Nothing
Description: For logging the module status messages of the other modules that are active in the system

Module Allocation Request

Receive
From: Tutor
Reply With: Module Allocation Reply, Processed NACK
Description: The Tutor is requesting to use this UMS module for a User Session

Module Allocation Reply

Send
To: Tutor
Expected Reply: Nothing
Description: Reply to the Tutor’s request to use this UMS module for a User Session

Initialize Domain Session Request

Receive
From: Domain
Reply With: Processed ACK, Processed NACK
Description: For being notified that a domain session is initializing

Start Domain Session

Receive
From: Domain
Reply With: Processed ACK, Processed NACK
Description: For being notified that a domain session is starting

Close Domain Session Request

Receive
From: Domain
Reply With: Processed ACK, Processed NACK
Description: For being notified that a domain session is ending

Kill Module

Receive
From: Anywhere
Reply With: Nothing
Description: For shutting down the module remotely

New User Request

Receive
From: Tutor
Reply With: Login Reply, Processed NACK
Description: Request for a new user to be created

User Id Request

Receive
From: Tutor
Reply With: User Id Reply, Processed NACK
Description: Request for a user id based on a username

Login Request

Receive
From: Tutor
Reply With: Login Reply, Processed NACK
Description: Request for a user to be logged in

Logout Request

Receive
From: Tutor
Reply With: Processed ACK, Processed NACK
Description: Request for a user to be logged out

Sensor File Created

Receive
From: Sensor
Reply With: Nothing
Description: Notification that a file has been created with sensor data

Submit Survey Results

Receive
From: Domain
Reply With: Processed ACK, Processed NACK
Description: Submit the results of a survey

Get Survey Request

Receive
From: Domain
Reply With: Get Survey Reply
Description: Request a survey

Domain Selection Request

Receive
From: Domain
Reply With: Domain Selection Reply, Processed NACK
Description: Request a domain session on the selected domain

Survey Check Request

Receive
From: Domain
Reply With: SurveyCheckResponse, Processed NACK
Description: The UMS module needs to check the survey references against entries in the survey database.

Domain Session Start Time Request

Receive
From: Monitor
Reply With: Domain Session Start Time Reply, Processed NACK
Description: Request the start time of a domain session.

Get Experiment Request

Receive
From: Domain
Expected Reply: Get Experiment Reply
Description: Reply to a request to retrieve the experiment details by experiment id.

Learning Management System (LMS) Module¶

Details¶

The primary function of the LMS module is keep track of a user’s training history. The GIFT LMS will save the scores of every lesson.

Subscriptions¶

LMS Discovery

Messages¶

Module Status

Send
To: LMS Discovery
Reply With: Nothing
Description: Notify all subscribers of the LMS module status

Module Allocation Request

Receive
From: Tutor
Reply With: Module Allocation Reply, Processed NACK
Description: The Tutor is requesting to use this LMS module for a User Session

Module Allocation Reply

Send
To: Tutor
Reply With: Nothing
Description: Reply to the Tutor’s request to use this LMS module for a User Session

LMS Data Request

Receive
From: Learner, Tutor
Reply With: LMS Data Reply, Processed NACK
Description: A request for a learner’s LMS data

Publish Lesson Score Request

Receive
From: Domain
Reply With: Publish Lesson Score Reply, Processed NACK
Description: The final score of a lesson, to be stored for later retrieval with the key returned from a successful publish

Kill Module

Receive
From: Anywhere
Reply With: Nothing
Description: For shutting down the module remotely

Learner Module¶

Details¶

The primary function of the Learner module is to determine the learner’s state.

Subscriptions¶

Learner Discovery

Messages¶

Module Status

Send
To: Learner Discovery
Expected Reply: Nothing
Description: Notify all subscribers of the Learner module status

Module Allocation Request

Receive
From: Domain
Reply With: Module Allocation Reply, Processed NACK
Description: The Domain is requesting to use this Learner module for a Domain Session

Module Allocation Reply

Send
To: Domain
Expected Reply: Nothing
Description: Reply to the Domain’s request to use this Learner module for a User Session

Sensor Data

Receive
From: Sensor
Reply With: Nothing
Description: For processing sensor data into human relatable behavior

Sensor Filter Data

Receive
From: Sensor
Reply With: Nothing
Description: For processing sensor data into human relatable behavior

Instantiate Learner Request

Receive
From: UMS
Reply With: Processed ACK, Processed NACK
Description: Try to instantiate a new learner

Initialize Domain Session Request

Receive
From: Domain
Reply With: Processed ACK, Processed NACK
Description: For being notified that a domain session is initializing

Start Domain Session

Receive
From: Domain
Reply With: Processed ACK, Processed NACK
Description: For being notified that a domain session is starting

Close Domain Session Request

Receive
From: Domain
Reply With: Nothing
Description: For being notified that a domain session is ending

Lesson Started

Receive
From: Anywhere
Reply With: Processed ACK, Processed NACK
Description: Notify learner module that the lesson started

Lesson Completed

Receive
From: Anywhere
Reply With: Processed ACK, Processed NACK
Description: Notify learner module that the lesson is complete

Publish Lesson Score Request

Receive
From: Anywhere
Reply With: Processed ACK, Processed NACK
Description: Publishes the score of the lesson completed by a learner

Kill Module

Receive
From: Anywhere
Reply With: Nothing
Description: For shutting down the module remotely

Submit Survey Results

Receive
From: Domain
Reply With: Processed ACK, Processed NACK
Description: Submit the results of a survey to a learner

Performance Assessment

Receive
From: Domain
Reply With: Nothing
Description: Give a performance assessment to a learner

Logout Request

Receive
From: Tutor
Reply With: Nothing
Description: Unregister a learner with the module

Learner State

Send
To: Pedagogical
Expected Reply: Nothing
Description: Notify modules of a learner’s state

Initialize Lesson Request

Receive
From: Domain
Reply With: Processed ACK, Processed NACK
Description: Tell a module to initialize a single lesson of a course during a domain session

Pedagogical Module¶

Details¶

The primary function of the Pedagogical module is to use information about the learner’s state to produce actions for the tutor to better influence learning.

Subscriptions¶

Pedagogical Discovery

Messages¶

Module Status

Send
To: Pedagogical Discovery
Expected Reply: Nothing
Description: Notify all subscribers of the Pedagogical module status

Module Allocation Request

Receive
From: Domain
Reply With: Module Allocation Reply, Processed NACK
Description: The Domain is requesting to use this Pedagogical module for a Domain Session

Module Allocation Reply

Send
To: Domain
Expected Reply: Nothing
Description: Reply to the Domain’s request to use this Pedagogical module for a User Session

Learner State

Receive
From: Learner
Reply With: Nothing
Description: Process learner state and update pedagogical actions

Initialize Domain Session Request

Receive
From: Domain
Reply With: Processed ACK, Processed NACK
Description: For being notified that a domain session is initializing

Start Domain Session

Receive
From: Domain
Reply With: Processed ACK, Processed NACK
Description: For being notified that a domain session is starting

Close Domain Session Request

Receive
From: Domain
Reply With: Processed ACK, Processed NACK
Description: For being notified that a domain session is ending

Lesson Started

Receive
From: Anywhere
Reply With: Processed ACK, Processed NACK
Description: Notify pedagogical module that the lesson started

Lesson Completed

Receive
From: Anywhere
Reply With: Processed ACK, Processed NACK
Description: Notify pedagogical module that the lesson is complete

Kill Module

Receive
From: Anywhere
Reply With: Nothing
Description: For shutting down the module remotely

Pedagogical Request

Send
To: Domain
Expected Reply: Nothing
Description: Suggest pedagogical action to a tutor

Initialize Lesson Request

Receive
From: Domain
Reply With: Processed ACK, Processed NACK
Description: Tell a module to initialize a single lesson of a course during a domain session

Initialize Pedagogical Model Request

Receive
From: Domain
Reply With: Processed ACK, Processed NACK
Description: Tell the Pedagogical Module to initialize a pedagogical model.

Course State

Receive
From: Domain
Reply With: Pedagogical Request, Nothing
Description: Provide the current course state to any pedagogical models. In some instances a model will return a pedagogical request.

Domain Module¶

Details¶

The primary function of the domain module is to create, maintain and assess domain sessions.

Subscriptions¶

UMS Discovery
LMS Discovery
Pedagogical Discovery
Tutor Discovery
Learner Discovery
Domain Discovery
Sensor Discovery
Gateway Discovery

Messages¶

Module Status

Send
To: Domain Discovery
Expected Reply: Nothing
Description: Notify modules of the Domain module status

Receive
From: LMS Discovery
Reply With: Nothing
Description: Get status of available LMS modules

Receive
From: UMS Discovery
Reply With: Nothing
Description: Get status of available UMS modules

Receive
From: Pedagogical Discovery
Reply With: Nothing
Description: Get status of available Pedagogical modules

Receive
From: Tutor Discovery
Reply With: Nothing
Description: Get status of available Tutor modules

Receive
From: Learner Discovery
Reply With: Nothing
Description: Get status of available Learner modules

Receive
From: Sensor Discovery
Reply With: Nothing
Description: Get status of available Sensor modules

Receive
From: Gateway Discovery
Reply With: Nothing
Description: Get status of available Gateway modules

Module Allocation Request

Receive
From: Tutor
Reply With: Module Allocation Reply, Processed NACK
Description: The Tutor is requesting to use this Domain module for a Domain Session

Send
To: Pedagogical, Learner, Sensor, Gateway
Expected Reply: Module Allocation Reply, Processed NACK
Description: Request that the module be allocated to this Domain module for a Domain Session

Module Allocation Reply

Send
To: Tutor
Expected Reply: Nothing
Description: Reply to the Tutor’s request to use this Domain module for a Domain Session

Receive
From: Pedagogical, Learner, Sensor, Gateway
Reply With: Nothing
Description: Replies to this Domain’s request to use the module for a Domain Session

Learner Tutor Action

Receive
From: Tutor
Reply With: Processed ACK, Processed NACK
Description: Notify domain of action completed by the learner on the tutoring system

Domain Options Request

Receive
From: Tutor
Reply With: Domain Options Reply, Processed NACK
Description: Request the current set of domain options

Domain Selection Request

Receive
From: Tutor
Reply With: Domain Selection Reply, Processed NACK
Description: Request a domain session on the selected domain

Chat Log

Receive
From: Tutor
Reply With: Processed ACK, Processed NACK
Description: For updating the domain module with the chat between the tutor and user

Kill Module

Receive
From: Anywhere
Reply With: Nothing
Description: For shutting down the module remotely

Close Domain Session Request

Send
To: Learner, UMS, Sensor, Gateway, Tutor
Expected Reply: Nothing
Description: Ends the domain session

Receive
From: Monitor, Tutor
Reply With: Processed ACK, Processed NACK
Description: Ends the domain session

Pedagogical Request

Receive
From: Pedagogical
Reply With: Nothing
Description: A request for an action

Get Survey Request

Send
To: UMS
Expected Reply: Get Survey Reply, Processed NACK
Description: Request the UMS for a survey

LoS Query

Send
To: Gateway
Expected Reply: Nothing
Description: Do a line of sight query

Submit Survey Results

Send
To: UMS
Expected Reply: Processed ACK, Processed NACK
Description: Submit the results of the survey to the UMS

Initialize Domain Session Request

Send
To: Learner, UMS, Sensor, Gateway, Pedagogical, Tutor
Expected Reply: Processed ACK, Processed NACK
Description: Tell a module to initialize a domain session

Instantiate Learner Request

Send
To: Learner
Expected Reply: Processed ACK, Processed NACK
Description: Request Learner to be instantiated

Start Domain Session

Send
To: Learner, UMS, Sensor, Gateway, Pedagogical, Tutor
Expected Reply: Processed ACK, Processed NACK
Description: Tell a module to start a domain session

Close Domain Session Request

Send
To: Learner, UMS, Sensor, Gateway,Tutor
Expected Reply: Processed ACK, Processed NACK
Description: Tell a module to close a domain session

Display Feedback Tutor Request

Send
To: Tutor
Expected Reply: Processed ACK, Processed NACK
Description: Tell the Tutor module to display feedback to the user

Display Guidance Tutor Request

Send
To: Tutor
Expected Reply: Processed ACK, Processed NACK
Description: Tell the Tutor module to display guidance to the user

Display Lesson Material Tutor Request

Send
To: Tutor
Expected Reply: Processed ACK, Processed NACK
Description: Tell the Tutor module to display lesson material to the user

Display Survey Tutor Request

Send
To: Tutor
Expected Reply: Processed NACK, Display Survey Tutor Reply

Description: Tell the Tutor module to display a survey to the user

Display AAR Tutor Request

Send
To: Tutor
Expected Reply: Processed ACK, Processed NACK
Description: Tell the Tutor module to display the After Action Review to the user

Display Chat Window Request

Send
To: Tutor
Expected Reply: Processed ACK, Processed NACK
Description: Request a chat window to be displayed to the learner

Display Chat Window Update Request

Send
To: Tutor
Expected Reply: Processed ACK, Processed NACK
Description: Request an update to the chat window to be displayed to the learner

SIMAN

(Siman Type = LOAD)

Send
To: Gateway
Expected Reply: Processed ACK, Processed NACK
Description: Tell the Gateway module to load a scenario

SIMAN

(Siman Type = START)

Send
To: Gateway
Expected Reply: Processed ACK, Processed NACK
Description: Tell the Gateway module to start a scenario

SIMAN

(Siman Type = STOP)

Send
To: Gateway
Expected Reply: Processed ACK, Processed NACK
Description: Tell the Gateway module to stop a scenario

SIMAN

(Siman Type = RESTART)

Send
To: Gateway
Expected Reply: Processed ACK, Processed NACK
Description: Tell the Gateway module to restart a scenario

SIMAN

(Siman Type = PAUSE)

Send
To: Gateway
Expected Reply: Processed ACK, Processed NACK
Description: Tell the Gateway module to pause a scenario

SIMAN

(Siman Type = RESUME)

Send
To: Gateway
Expected Reply: Processed ACK, Processed NACK
Description: Tell the Gateway module to resume a scenario

Environment Control

Send
To: Gateway
Expected Reply: Processed ACK, Processed NACK
Description: Tweak the environment of the current interop application

Publish Lesson Score Request

Send
To: LMS
Expected Reply: Processed ACK, Processed NACK
Description: Notify the LMS of the score achieved by the user for a specific lesson

Performance Assessment

Send
To: Learner
Expected Reply: Nothing
Description: Notify the Learner module of the completed performance assessment

Initialize Interop Connections

Send
To: Gateway
Expected Reply: Interop Connections Info, Processed NACK
Description: Notify the Gateway module of the interop connections needed for the lesson that is about to begin

Initialize Lesson Request

Send
To: Learner, Pedagogical, Tutor
Expected Reply: Processed ACK, Processed NACK
Description: Tell a module to initialize a single lesson of a course during a domain session

Initialize Pedagogical Model Request

Send
To: Pedagogical
Expected Reply: Processed ACK, Processed NACK
Description: Tell the Pedagogical Module to initialize a pedagogical model.

Active Domain Sessions Request

Receive
From: Monitor
Expected Reply: Active Domain Sessions Reply
Description: Request for the active domain sessions known to this domain module instance.

Active Domain Sessions Reply

Send
To: Monitor
Expected Reply: Nothing
Description: Reply to a request for the active domain sessions known to this domain module instance.

Course State

Send
To: Pedagogical
Expected Reply: Pedagogical Request (when the course state warrants it), Nothing
Description: The pedagogical module needs to know where in the course the user is in order to inform various pedagogical model(s).

Survey Check Request

Send
To: UMS
Expected Reply: SurveyCheckResponse, Processed NACK
Description: The UMS module needs to check the survey references against entries in the survey database.

Display Course Init Instructions Request

Send
To: Tutor
Expected Reply: Processed ACK, Processed NACK
Description: Tell the Tutor module to display the generic course initialize instructions webpage to the user

Experiment Course Request

Receive
From: Tutor
Expected Reply: Domain Selection Reply, Processed NACK
Description: Starts a new subject in the experiment's course

Get Experiment Request

Send
To: UMS
Expected Reply: Get Experiment Reply
Description: Request the experiment details by experiment id.

Subject Created

Send
To: Tutor
Expected Reply: Processed ACK
Description: Notify the tutor that a subject has been created for the experiment being started as per the tutor's request

Load Progress

Send
To: Tutor
Expected Reply: Nothing
Description: Forwarding the training application content loading progress information from the gateway module interop plugin

Training Application Survey Submit

Send
To: Tutor
Expected Reply: Nothing
Description: Forwarding the training application survey submit event so the tutor can submit the currently presented survey

Tutor Survey Question Response

Send
To: Gateway
Expected Reply: Nothing
Description: Forwarding the selecting an answer (not submitting the answer/survey) to a survey question event from the tutor

Tutor Survey Question Response

Receive
To: Tutor
Expected Reply: Nothing
Description: The selecting an answer (not submitting the answer/survey) to a survey question event from the tutor

Training Application Survey Response

Send
To: Tutor
Expected Reply: Nothing
Description: Forwarding the event of the user selecting a survey response in the external training application from the gateway module interop plugin

Sensor Module¶

Details¶

The primary function of the Sensor module is to read and filter sensor data.

Subscriptions¶

Sensor Discovery

Messages¶

Module Status

Send
To: Sensor Discovery
Expected Reply: Nothing
Description: Notify subscribers of Sensor Module status

Module Allocation Request

Receive
From: Domain
Reply With: Module Allocation Reply, Processed NACK
Description: The Domain is requesting to use this Sensor module for a Domain Session

Module Allocation Reply

Send
To: Domain
Expected Reply: Nothing
Description: Reply to the Domain’s request to use this Sensor module for a Domain Session

Initialize Domain Session Request

Receive
From: Domain
Reply With: Processed ACK, Processed NACK
Description: For being notified that a domain session is initializing

Start Domain Session

Receive
From: Domain
Reply With: Processed ACK, Processed NACK
Description: For being notified that a domain session is starting

Close Domain Session Request

Receive
From: Domain
Reply With: Processed ACK, Processed NACK
Description: For being notified that a domain session is being ended

Kill Module

Receive
From: Anywhere
Reply With: Nothing
Description: For shutting down the module remotely

Sensor Data

Send
To: Learner
Expected Reply: Nothing
Description: Propagate new Sensor data for processing

Sensor Filter Data

Send
To: Learner
Expected Reply: Nothing
Description: Propagate new Filtered Sensor data for processing

Sensor File Created

Send
To: UMS
Expected Reply: Nothing
Description: Notify modules that a new Sensor File was created

Tutor Module¶

Details¶

The primary function of the Tutor module is to provide an interface that allows interaction between GIFT and the learner.

Subscriptions¶

UMS Discovery
LMS Discovery
Domain Discovery
Tutor Discovery

Messages¶

Module Status

Send
To: Tutor Discovery
Expected Reply: Nothing
Description: Notify subscribers of Tutor Module status

Receive
To: UMS Discovery
Expected Reply: Nothing
Description: Get status of available UMS modules

Receive
To: LMS Discovery
Expected Reply: Nothing
Description: Get status of available LMS modules

Receive
To: Domain Discovery
Expected Reply: Nothing
Description: Get status of available Domain modules

Module Allocation Request

Send
To: Domain, UMS and LMS
Expected Reply: Module Allocation Reply, Processed NACK
Description: Request that the module be allocated to this Tutor module for a User Session

Module Allocation Reply

Receive
From: Domain, UMS and LMS
Expected Reply: Nothing
Description: Replies to this Tutor’s request to use the module for a User Session

Initialize Domain Session Request

Receive
From: Domain
Reply With: Processed ACK, Processed NACK
Description: For being notified that a domain session is initializing

Start Domain Session

Receive
From: Domain
Reply With: Processed ACK, Processed NACK
Description: For being notified that a domain session is starting

Close Domain Session Request

Receive
From: Domain
Reply With: Processed ACK, Processed NACK
Description: For being notified that a domain session is ending

Kill Module

Receive
From: Anywhere
Reply With: Nothing
Description: For shutting down the module remotely

Display Guidance Tutor Request

Receive
From: Domain
Reply With: Processed ACK, Processed NACK
Description: Request some guidance to be displayed to the learner

Display Feedback Tutor Request

Receive
From: Domain
Reply With: Processed ACK, Processed NACK
Description: Request feedback to be displayed to the learner

Display Survey Tutor Request

Receive
From: Domain
Reply With: Display Survey Tutor Reply, Processed NACK
Description: Request a survey to be displayed to the learner

Display AAR Tutor Request

Receive
From: Domain
Reply With: Processed ACK, Processed NACK
Description: Request an After Action Review to be displayed to the learner

Display Lesson Material Tutor Request

Receive
From: Domain
Reply With: Processed ACK, Processed NACK
Description: Request lesson material to be displayed to the learner

Display Chat Window Request

Receive
From: Domain
Reply With: Processed ACK, Processed NACK
Description: Request a chat window to be displayed to the learner

Display Chat Window Update Request

Receive
From: Domain
Reply With: Processed ACK, Processed NACK
Description: Request an update to the chat window to be displayed to the learner

New User Request

Send
To: UMS
Expected Reply: Processed NACK, Login Reply
Description: Request a new user to be added to the UMS

Login Request

Send
To: UMS
Expected Reply: Processed NACK, Login Reply
Description: Request a user login

User Id Request

Send
To: UMS
Expected Reply: Processed NACK, User Id Reply
Description: Request the unique GIFT user id based on the GIFT username

LMS Data Request

Send
To: LMS
Expected Reply: LMS Data Reply, Processed NACK
Description: Request all LMS data on a user

Domain Options Request

Send
To: Domain
Expected Reply: Domain Options Reply, Processed NACK
Description: Request a list of available domains

Domain Selection Request

Send
To: Domain
Expected Reply: Domain Selection Reply, Processed NACK
Description: Select a domain for use

Learner Tutor Action

Send
To: Domain
Expected Reply: Processed ACK, Processed NACK
Description: Notify Domain of a completed report

Logout Request

Send
To: Learner, UMS
Expected Reply: Processed ACK, Processed NACK
Description: Log a user out

Chat Log

Send
To: Domain
Expected Reply: Processed ACK, Processed NACK
Description: For updating the domain module with the chat between the tutor and user

Initialize Lesson Request

Receive
From: Domain
Reply With: Processed ACK, Processed NACK
Description: Tell a module to initialize a single lesson of a course during a domain session

Active User Sessions Request

Receive
From: Monitor
Expected Reply: Active User Sessions Reply
Description: Request for the active user sessions known to this tutor instance.

Active User Sessions Reply

Send
To: Monitor
Expected Reply: Nothing
Description: Reply to a request for the active user sessions known to this tutor instance.

Get Experiment Request

Send
To: Domain
Expected Reply: Get Experiment Reply
Description: Reply to a request for the experiment request by experiment id.

Display Course Init Instructions Request

Receive
From: Domain
Expected Reply: Processed ACK, Processed NACK
Description: Tell the Tutor module to display the generic course initialize instructions webpage to the user

Subject Created

Receive
From: Domain
Expected Reply: Processed ACK
Description: Notifcation that a subject has been created for the experiment being started as per the tutor's request

Load Progress

Receive
From: Domain
Expected Reply: None
Description: Forwarded training application content loading progress from the gateway module interop plugin

Training Application Survey Submit

Receive
From: Domain
Expected Reply: Nothing
Description: Forwarded the training application survey submit event so the tutor can submit the currently presented survey

Tutor Survey Question Response

Send
To: Domain
Expected Reply: Nothing
Description: The selecting an answer (not submitting the answer/survey) to a survey question event

Training Application Survey Response

Receive
From: Domain
Expected Reply: Nothing
Description: Forwarded the event of the user selecting a survey response in the external training application from the gateway module interop plugin

Gateway Module¶

Details¶

The primary function of the Gateway module is to listen for communication outside of GIFT and then convert it into GIFT messages and vice-versa.

When a message is received from outside of GIFT (e.g., VBS DIS connection), the Gateway module converts that message into a GIFT message and sends it to the Gateway Module’s topic (i.e., broadcasts the message).

Subscriptions¶

Gateway Discovery Topic
Gateway Topic

Messages¶

Gateway Module Status

Send
To: Gateway Discovery Topic
Expected Reply: Nothing
Description: Notify subscribers of Gateway status and the name of the topic where simulation messages will be sent to for other modules to consume.

Module Allocation Request

Receive
From: Domain
Reply With: Module Allocation Reply, Processed NACK
Description: The Domain is requesting to use this Gateway module for a Domain Session

Module Allocation Reply

Send
To: Domain
Expected Reply: Nothing
Description: Reply to the Domain’s request to use this Gateway module for a Domain Session

Initialize Domain Session Request

Receive
From: Domain
Reply With: Processed ACK, Processed NACK
Description: For being notified that a domain session is initializing

Start Domain Session

Receive
From: Domain
Reply With: Processed ACK, Processed NACK
Description: For being notified that a domain session is starting

Close Domain Session Request

Receive
From: Domain
Reply With: Processed ACK, Processed NACK
Description: For being notified that a domain session is ending

Kill Module

Receive
From: Anywhere
Reply With: Nothing
Description: For shutting down the module remotely

Initialize Interop Connections

Receive
To: Domain
Reply With: Interop Connections Info, Processed NACK
Description: Initialize/Enable the specified interop connections needed for the lesson that is about to begin

Interoperability¶

The Gateway Module has simulation interoperability capabilities with the following standards. These interfaces allow GIFT to communicate with training applications that also implement the same standards. Each section will list the messages from each standard that GIFT can currently handle. Refer to GIFT Configuration Settings for more information on interoperability configurations and the other interoperability interfaces.

DIS

This interface uses JDIS library (http://sourceforge.net/projects/jdis/) to send/receive DIS PDUs.

For information on the DIS standard concerning these messages see: https://en.wikipedia.org/wiki/Distributed_Interactive_Simulation

Detonation PDU
Entity State PDU
Fire PDU

Currently the DIS interop interface can send these GIFT messages:

Weapon Fire
Detonation
Entity State
Collision

Currently the DIS interop interface can handle these incoming GIFT messages and convert and send their equivalents as DIS messages:

Start Resume
Stop Freeze

JSON DIS

This interface is built upon the DIS interface mentioned above. The difference is that incoming DIS PDU messages created by applications external to GIFT are converted into GIFT JSON messages. These JSON messages are perfectly formatted for use in the SIMILE assessment engine in the Domain module.

The GIFT game state message is defined by Generic JSON Status.

VBS

This interop interface communicates to the GIFT VBS plugin DLL.

Currently the VBS interop interface can handle these incoming GIFT messages:

SIMAN
Environment Control
LoS Query
Display Feedback Gateway Request

Currently the VBS interop interface can send these GIFT messages:

LoS Result

ARES

This interop interface communicates to the Augemented REality Sandtable application.

Currently the ARES interop interface can handle these incoming GIFT messages:

SIMAN
Survey Presented Notification
Tutor Survey Question Response

Currently the ARES interop interface can send these GIFT messages:

Training App Survey Response
Training App Survey Submit

PPT

This interop interface uses JACOB library (http://sourceforge.net/projects/jacob-project/) to communicate with Microsoft PowerPoint.

Currently the PPT interop interface can handle these incoming GIFT messages:

SIMAN

Currently the PPT interop interface can send these GIFT messages:

Start Resume
Stop Freeze
PowerPoint State
Load Progress

TC3

This interop interface handles communication between TC3 (aka vMedic) game engine.

Currently the TC3 interop interface can handle these incoming GIFT messages:

SIMAN

Currently the TC3 interop interface can send these GIFT messages:

Generic JSON Status

SCATT

This interop interface handles communication between the SCATT Pro marksmanship training application.

Currently the SCATT interop interface can handle these incoming GIFT messages:

SIMAN

Currently the SCATT interop interface can send these GIFT messages:

Rifle Shot

Simple (XML-RPC)

This interop interface handles communication between the Simple Training App created for the GIFT Developer Guide.

Currently the Simple interop interface can handle these incoming GIFT messages:

SIMAN
Display Feedback Gateway Request

Currently the Simple interop interface can send these GIFT messages:

Simple Example State

ActiveMQ: Topics and Queues¶

GIFT uses ActiveMQ connections to handle transporting of messages between modules. For more information on ActiveMQ visit http://activemq.apache.org/.

Topics¶

Topics are used by GIFT to implement publish and subscribe semantics. A message published to a topic is delivered to all subscribers, so zero to many subscribers will receive a copy of the message. Only subscribers who had an active subscription at the time the broker receives the message will get a copy of the message.

UMS Discovery¶

The UMS discovery topic is used to obtain the address and status of available UMS modules.

Publishers
UMS

Subscribers
Domain, Monitor, Tutor

LMS Discovery¶

The LMS discovery topic is used to obtain the address and status of available LMS modules.

Publishers
LMS

Subscribers
Tutor, Monitor, Domain, UMS (for logging)

Pedagogical Discovery¶

The Pedagogical discovery topic is used to obtain the address and status of available Pedagogical modules.

Publishers
Pedagogical

Subscribers
Monitor, Domain, UMS (for logging)

Tutor Discovery¶

The Tutor discovery topic is used to obtain the address and status of available Tutor modules.

Publishers
Tutor

Subscribers
Monitor, Domain, UMS (for logging)

Learner Discovery¶

The Learner discovery topic is used to obtain the address and status of available Learner modules.

Publishers
Learner

Subscribers
Monitor, Domain, UMS (for logging)

Sensor Discovery¶

The Sensor discovery topic is used to obtain the address and status of available sensor modules.

Publishers
Sensor

Subscribers
Domain, Monitor, UMS (for logging)

Domain Discovery¶

The Domain discovery topic is used to obtain the address and status of available domain modules.

Publishers
Domain

Subscribers
Tutor, Monitor, UMS (for logging)

Gateway Discovery¶

The Gateway discovery topic is used to obtain the address and status of available Gateway modules.

Publishers
Gateway

Subscribers
Domain, Monitor, UMS (for logging)

Gateway¶

The Gateway topic is used to send GIFT simulation messages from interop plugins (e.g., DIS, VBS plugin).

Publishers
Gateway

Subscribers
Domain, Monitor, UMS (for logging)

Queues¶

Queues are used to send information from a single source to a single destination. The reader of a queue is the message recipient. GIFT uses Queues to send messages from one module to another module. Every module has a queue with the “Inbox” suffix (e.g., Sensor_Queue:192.168.1.113:Inbox) which is present in that module’s status message. The Inbox queue is used as the destination to send messages to a particular module. The modules themselves actually read messages from a queue with a similar name but without the “Inbox” suffix. This setup provides GIFT the opportunity to route messages to the message logger queue in the UMS.

Messaging¶

Overview¶

Communication between modules in GIFT is done through ActiveMQ messaging, for more information on ActiveMQ, visit http://activemq.apache.org/.

Messages are formatted as JSON strings, for more information on JSON, see: http://www.json.org/

For the messages and data objects below, note the following:

Requires: This message or data object needs to also include all the properties of the required message or data object.

Assigned Value: This message or data object needs to set the indicated property to the specified value.

For the enumeration value type, use the string representation of the enumeration value

Time Stamps¶

Timestamps use UNIX (epoch) time stored as 64-bit signed integers. The Timestamp property in the GIFT Message Header should always hold an absolute timestamp of when the message was created. See http://en.wikipedia.org/wiki/Unix_time for more details.

Message Sequences¶

This section contains details about the sequence of messages for common events in GIFT execution.

Key:
S – Message Sender
R – Message Recipient

Start Domain Session
Once the learner starts a selected GIFT course, the following message sequence happens. The end of this sequence is when the first course transition is about to be handled.

Note: ACK messages are not shown.
Note: This sequence doesn't apply to a subject in an experiment starting an experiment's course. Continue reading for more details.

Message	Tutor	Domain	Sensor	Learner	Ped	Gateway	UMS	LMS
Domain Selection Request	S	R
Domain Selection Request		S					R
Domain Selection Reply		R					S
Module Allocation Request		S			R
Module Allocation Reply		R			S
Module Allocation Request		S		R
Module Allocation Reply		R		S
Module Allocation Request		S	R
Module Allocation Reply		R	S
If running in Desktop Mode:
Module Allocation Request		S				R
Module Allocation Reply		R				S
otherwise running in Server mode:
Display Course Initialize Instructions	R	S
Processed ACK	S	R
Once Domain Module receives Gateway module heartbeat
Module Allocation Request		S				R
Module Allocation Reply		R				S
Display Course Initialize Instructions	R	S
Processed ACK	S	R
Configure Interop Connections		S				R
Processed ACK		R				S
Display Course Initialize Instructions	R	S
Processed ACK	S	R
Domain Selection Reply	R	S
Instantiate Learner Request		S		R
LMS Data Request				S				R
LMS Data Reply				R				S
Initalize Domain Session Request	R	S	R	R	R	R	R
Processed ACK	S	R	S	S	S	S	S
Initalize Pedagogical Model Request		S			R
Processed ACK		R			S
Start Domain Session	R	S	R	R	R	R	R
Processed ACK	S	R	S	S	S	S	S
Course State		S		R
course specific requests…

Start Training Application course transition
This message sequence happens when a training application course transition is reached. The end of this message sequence is when game state messages start arriving.

Notes:

• ACK messages are not shown
• The * indicates that training application game state messages can start arriving after the gateway module acknowledges that message appropriately.

Message	Tutor	Domain	Sensor	Learner	Ped	Gateway	UMS	LMS
Course State		S			R
Initialize Interop Connections		S				R
Siman (load)		S				R
Initialize Pedagogical Model Request		S			R
Initialize Lesson Request		S			R
Display Learner Actions Request	R	S
Lesson Started	R(2)	S		R(1)	R(3)
Siman (start)*		S				R
Start Resume (game state)						S
game state messages...
Pre-GIFT v2014-2 (5.0)
Course State		S			R
Initialize Interop Connections		S				R
Siman (load)		S				R
Siman (start)*		S				R
Start Resume (game state)						S
Initialize Lesson Request		S		R
Display Learner Actions Request	R	S
Initialize Pedagogical Model Request		S			R
Lesson Started	R(2)	S		R(1)	R(3)
game state messages…

Start Experiment
Once a subject selects to start an experiment's course, the following message sequence happens. The end of this sequence is when the first course transition is about to be handled.

Note: ACK messages are not shown.

Message	Tutor	Domain	Sensor	Learner	Ped	Gateway	UMS	LMS
Experiment Course Request	S	R
Module Allocation Request		S					R
Module Allocation Reply		R					S
Get Experiment Request		S					R
Get Experiment Reply		R					S
If there are surveys in the course:
Survey Check Request		S					R
Survey Check Response		R					S
New User Request		S					R
Login Reply		R					S
Subject Created	R	S
Module Allocation Request		S			R
Module Allocation Reply		R			S
Module Allocation Request		S		R
Module Allocation Reply		R		S
Module Allocation Request		S	R
Module Allocation Reply		R	S
If running in Desktop Mode:
Module Allocation Request		S				R
Module Allocation Reply		R				S
otherwise running in Server mode:
Display Course Initialize Instructions	R	S
Processed ACK	S	R
Once Domain Module receives Gateway module heartbeat
Module Allocation Request		S				R
Module Allocation Reply		R				S
Display Course Initialize Instructions	R	S
Processed ACK	S	R
Configure Interop Connections		S				R
Processed ACK		R				S
Display Course Initialize Instructions	R	S
Processed ACK	S	R
Domain Selection Reply	R	S
Instantiate Learner Request		S		R
LMS Data Request				S				R
LMS Data Reply				R				S
Initalize Domain Session Request	R	S	R	R	R	R	R
Processed ACK	S	R	S	S	S	S	S
Initalize Pedagogical Model Request		S			R
Processed ACK		R			S
Start Domain Session	R	S	R	R	R	R	R
Processed ACK	S	R	S	S	S	S	S
Course State		S			R
course specific requests…

GIFT Message Headers¶

GIFT Message Header¶

Property Name	JSON Key	Value Type	Description
Message Type	Message_Type	Enum (Message Type)	The type of message being sent
Timestamp	Time_Stamp	Long ((Time Stamp)	The time the message was sent
Sender Module Type	SenderModuleType	String	The module type of the sender module
Sender Module Name	SenderModuleName	String	The name of the sender module
Sender Queue Name	SenderQueueName	String	The inbox queue of the sender queue
Destination Queue Name	DestinationQueueName	String	Which queue to send the message to
Sequence Number	SequenceNumber	Integer	The sequence number of the message
Needs ACK	NeedsACK	Boolean	If the message requires an ACK reply
Reply To Sequence Number	ReplyToSequenceNumber	Integer	(Optional) the sequence number of a message this message is a reply too. If this message is not a reply to another message, don’t use this JSON key in the message.

GIFT User Session Message Header¶

Requires GIFT Message Header

Property Name	JSON Key	Value Type	Description
User ID	userId	Integer	The ID of the user
Username	username	String	The username of the GIFT user

GIFT Domain Session Message Header¶

Requires GIFT User Session Message Header

Property Name	JSON Key	Value Type	Description
Domain Session ID	SessionId	Integer	The ID of the domain session
Experiment ID	experimentId	String	(optional) unique id of an experiment if this domain session is part of an experiment session.

GIFT Messages¶

Message Name	Message Type Enum Value	Header Type	Payload
ACK	ACK	Message, Domain Session Message, User Session Message *	None
Active Domain Sessions Request	ActiveDomainSessionsRequest	Message	None
Active Domain Sessions Reply	ActiveDomainSessionsReply	Message	Domain Session List
Active User Sessions Request	ActiveUserSessionsRequest	Message	None
Active User Sessions Reply	ActiveUserSessionsReply	Message	User Session List
Chat Log	ChatLog	Domain Session Message	Chat Log
Close Domain Session Request	CloseDomainSessionRequest	Domain Session Message	Close Domain Session Request
Collision	Collision	Domain Session Message	Collision
Course State	CourseState	Domain Session Message	Course State
Detonation	Detonation	Message	Detonation
Display AAR Tutor Request	DisplayAarTutorRequest	Domain Session Message	Display AAR Tutor Request
Display Chat Window Request	DisplayChatWindowRequest	Domain Session Message	Display Chat Window Request
Display Chat Window Update Request	DisplayChatWindowUpdateRequest	Domain Session Message	Display Chat Window Update Request
Display Course Init Instructions Request	DisplayCourseInitInstructionsRequest	Domain Session Message	Display Course Init Instructions Request
Display Feedback Tutor Request	DisplayFeedbackTutorRequest	Domain Session Message	Tutor User Interface Feedback
Display Feedback Gateway Request	DisplayFeedbackGatewayRequest	Domain Session Message	String Payload – the feedback message
Display Leaner Actions Tutor Request	DisplayLearnerActionsTutorRequest	Domain Session Message	Display Learner Actions Tutor Request
Display Lesson Material Tutor Request	DisplayLessonMaterialTutorRequest	Domain Session Message	Display Media Tutor Request
Display Survey Tutor Reply	DisplaySurveyTutorReply	Domain Session Message *	Survey Response
Display Survey Tutor Request	DisplaySurveyTutorRequest	Domain Session Message	Survey
Display Guidance Tutor Request	DisplayGuidanceTutorRequest	Domain Session Message	Display Guidance Tutor Request (Base)
Domain Options Request	DomainOptionsRequest	User Session Message	Domain Options Request
Domain Options Reply	DomainOptionsReply	User Session Message *	Domain Option List
Domain Selection Reply	DomainSelectionReply	User Session Message *	Domain Session
Domain Selection Request	DomainSelectionRequest	User Session Message	Domain Selection Request
Domain Session Start Time Request	DomainSessionStartTimeRequest	Message	Integer
Domain Session Start Time Reply	DomainSessionStartTimeRequest	Message	Long
Entity State	EntityState	Message	Entity State
Environment Control	EnvironmentControl	Domain Session Message	Environment Control
Experiment Course Request	ExperimentCourseRequest	Message	Experiment Course Request
Gateway Module Status	GatewayModuleStatus	Message	Gateway Module Status
Generic JSON Status	GenericJSONState	Domain Session Message	Generic JSON State
Get Experiment Request	GetExperimentRequest	Domain Session Message *	Get Experiment Request
Get Experiment Reply	GetExperimentReply	Domain Session Message *	Experiment
Get Survey Reply	GetSurveyReply	Domain Session Message *	Survey
Get Survey Request	GetSurveyRequest	Domain Session Message	Get Survey Request
Initialize Domain Session Request	InitializeDomainSessionRequest	Domain Session Message	Initialize Domain Session Request
Initialize Interop Connections	InitializeInteropConnections	Domain Session Message	Initialize Interop Connections
Initialize Lesson Request	InitializeLessonRequest	Domain Session Message	None
Initialize Pedagogical Model Request	InitializePedagogicalModelRequest	Domain Session Message	Initialize Pedagogical Model Request
Instantiate Learner Request	InstantiateLearnerRequest	User Session Message	Instantiate Learner Request
Interop Connections Info	InteropConnectionsInfo	Domain Session Message *	Interop Connections Info
Kill Module	KillModule	Message	None
Learner State	LearnerState	Domain Session Message	Learner State
Learner Tutor Action	LearnerTutorAction	DoDomain Session Message	Learner Tutor Action
Lesson Completed	LessonCompleted	Domain Session Message	None
Lesson Started	LessonStarted	Domain Session Message	None
LMS Data Reply	LMSDataReply	User Session Message *	LMS Course Records
LMS Data Request	LMSDataRequest	User Session Message	LMS Data Request
Load Progress	LoadProgress	Domain Session Message	Generic JSON State
Login Reply	LoginReply	User Session Message *	User Data
Login Request	LoginRequest	User Session Message	Login Request
Logout Request	LogOutRequest	User Session Message	None
LoS Query	LoSQuery	Domain Session Message	Line of Sight Query
LoS Result	LoSResult	Domain Session Message	Line of Sight Result
Module Allocation Reply	ModuleAllocationReply	Message	Module Allocation Reply
Module Allocation Request	ModuleAllocationRequest	Message	Module Allocation Request
Module Status	ModuleStatus	Message	Module Status
NACK	NACK	Message, Domain Session Message, User Session Message *	NACK
New User Request	NewUserRequest	Message	User Data
Pedagogical Request	PedagogicalRequest	Domain Session Message	Pedagogical Request
Performance Assessment	PerformanceAssessment	Domain Session Message	Performance Assessment
PowerPoint State	PowerPointState	Message	PowerPoint State
Publish Lesson Score Request	PublishLessonScoreRequest	Domain Session Message	Publish Lesson Score Request
Publish Lesson Score Reply	PublishLessonScoreReply	Domain Session Message	Publish Lesson Score Response
Processed ACK	ProcessedACK	Message, Domain Session Message, User Session Message *	None
Processed NACK	ProcessedNACK	Message, Domain Session Message, User Session Message *	NACK
Rifle Shot	RifleShot	Message	Rifle Shot
Sensor Data	SensorData	Domain Session Message	Unfiltered Sensor Data
Sensor Status	SensorStatus	User Session Message	Sensor Status
Sensor File Created	SensorFileCreated	Domain Session Message	Sensor File Created
Sensor Filter Data	SensorFilterData	Domain Session Message	Filtered Sensor Data
SIMAN	Siman	Domain Session Message	Siman
Simple Example State	SimpleExampleState	Domain Session Message	Simple Example State
Start Domain Session	StartDomainSession	Domain Session Message	None
Start Resume	StartResume	Message	Start Resume
Stop Freeze	StopFreeze	Message	Stop Freeze
Subject Created	SubjectCreated	User Session Message	Subject Created
Submit Survey Results	SubmitSurveyResults	Domain Session Message	Submit Survey Results
SurveyCheckRequest	SurveyCheckRequest	User Session Message	Survey Check Request
SurveyCheckResponse	SurveyCheckResponse	User Session Message	Survey Check Response
TrainingAppSurveyResponse	TrainingAppSurveyResponse	User Session Message	Survey Response
TrainingAppSurveySubmit	TrainingAppSurveySubmit	Domain Session Message	None
TutorSurveyQuestionResponse	TutorSurveyQuestionResponse	Domain Session Message	Question Response
User Id Request	UserIdRequest	Message	String Payload – the GIFT username to use to lookup the user id
User Id Reply	UserIdReply	Message	User Data
Weapon Fire	WeaponFire	Message	Weapon Fire

• - Fill in the proper Sequence Number for the reply.

GIFT Payloads¶

Affective State¶

Property Name	JSON Key	Value Type	Description
Attributes	attributes	Map (Enum (Learner State Attribute Name), Learner State Attribute)	Attributes that describe the affective state of the learner
Class	stateType	String	Unique name of an affective state object (value is “AffectiveState”)

After Action Review Course Event¶

Requires: After Action Review Event (Base)
Assigned Values: Class = AfterActionReviewCourseEvent

Property Name	JSON Key	Value Type	Description
Graded Score Node	Graded_Score_Node	Object (Graded Score Node)	The graded score node of the event

After Action Review Event (Base)¶

Property Name	JSON Key	Value Type	Description
Class	eventType	String	The class of the event type

After Action Review Survey Event¶

Requires: After Action Review Event (Base)
Assigned Values: Class = AfterActionReviewSurveyEvent

Property Name	JSON Key	Value Type	Description
Scores	Scores	Object (Score (Base))	The score of the survey reponse
Survey Response	Survey_Response	Object (Survey Response)	The response to the survey

Answer Score (Base)¶

Requires: Score (Base)
Assigned Values: Class = AbstractAnswerScore

Property Name	JSON Key	Value Type	Description
Class	answerScoreType	String	The score of the survey reponse
Total Earned Points	Total_Earned_Points	Integer	The total points earned
Highest Possible Points	Highest_Possible_Points	Integer	The highest possible points

Assessment (Base)¶

Property Name	JSON Key	Value Type	Description
Name	name	String	Name of the item being assessed
Assessment	assessment	Enum (Assessment Level)	Assessment of the item
Time	time	String (Time Stamp)	Time when the last assessment was calculated
ID	id	Integer	Unique performance id that maps to this assessment
Priority	Priority	Integer	(Optional) the current priority value of the performance assessment node. Priority can be used to filter pedagogical strategies.
Class	assessmentType	String	Unique name of an assessment object (Concept Assessment, Intermediate Concept Assessment, Task Assessment)

Attribute Scorer Properties¶

Property Name	JSON Key	Value Type	Description
Type	Type	Enum (Learner State Attribute Name)	The learner state to apply to the result of the scoring conditions.
Return Conditions	Return_Conditions	List ( Object (Return Value Condition))	The list of conditions to use for scoring

Avatar Data¶

Property Name	JSON Key	Value Type	Description
URL	avatarURL	String	The URL of the avatar to display, cannot be null
Width	avatarWidth	Integer	The width of the avatar to display, cannot be null
Height	avatarHeight	Integer	The height of the avatar to display, cannot be null

Branch Adaptation Strategy¶

Property Name	JSON Key	Value Type	Description
Quadrant	quadrant	Enum (Merrill Quadrant)	The Merrill quadrant the strategy is associated with.
Attributes	attributes	Array (Object (Metadata Attribute Item))	List of metadata attributes used to find matching domain metadata files.

Burst Descriptor¶

Property Name	JSON Key	Value Type	Description
Munition Type	munitionType	Object (Entity Type)	The type of munition used
Warhead	warhead	Integer	Type of warhead used
Fuse	fuse	Integer	Type of fuse used
Quantity	quantity	Integer	Number of rounds fired in the burst
Rate	rate	Integer	Rounds per minute

Category¶

Property Name	JSON Key	Value Type	Description
ID	Category_Id	Integer	The ID of the category
Name	Category_Name	String	The name of the category

Chat Log¶

Property Name	JSON Key	Value Type	Description
Chat Id	Id	Integer	The unique id of a chat session used to match/sync chat updates and requests together.
Tutor Entries	tutor	Array (Object (String Payload))	The chat messages from the tutor
User Entries	user	Array (Object (String Payload))	The chat messages from the user

Clear Text Action¶

Property Name	JSON Key	Value Type	Description
No properties used	-	-	-

Close Domain Session Request¶

Property Name	JSON Key	Value Type	Description
Reason	String	String	(optional) a message about why the domain session is closing.

Collision¶

Property Name	JSON Key	Value Type	Description
Issuing Entity	issuingId	Object (Entity Identifier)	The unique identifier for the entity that is issuing the collision information.
Colliding Entity	collidingId	Object (Entity Identifier)	The unique identifier for the entity which has collided with the issuing entity.
Collision Type	type	Integer	Type of collision

Cognitive State¶

Property Name	JSON Key	Value Type	Description
Attributes	attributes	Map (Enum (Learner State Attribute Name, Object (Learner State Attribute))	Attributes that describe the affective state of the learner
Class	stateType	String	Unique name of a cognitive state object (value is “CognitiveState”)

Concept Assessment¶

Requires: Assessment
Assigned Values: Class = ConceptAssessment

Concept Parameter¶

Property Name	JSON Key	Value Type	Description
Concept Name	conceptName	String	The name of a concept
Parameters	parameters	Array (Question Type Parameter)	Contains additional parameters for this concept such as the number of questions needed in the survey request response.
Preferred Questions	preferQuestions	Array (Integers)	A list of unique question ids for questions that are preferred to be given in the survey request response. Can be empty.
Questions to Avoid	avoidQuestions	Array (Integers)	A list of unique question ids for questions that should be not be given in the survey request response. Can be empty.

Concept Performance State¶

Property Name	JSON Key	Value Type	Description
State	state	Object (Performance State Attribute)	Performance state of the concept

Course State¶

Property Name	JSON Key	Value Type	Description
Merrill Quadrant	quadrant	Enum (Merrill Quadrant)	(Optional) the current Merrill quadrant the course is at in its list of transitions.

Default Raw Score¶

Requires: Raw Score
Assigned Values: Class = DefaultRawScore

Property Name	JSON Key	Value Type	Description
Value	value	String	Value of the score

Detonation¶

Property Name	JSON Key	Value Type	Description
Firing Entity ID	firingEntityID	Object (Entity Identifier)	ID of the firing entity
Target Entity ID	targetEntityID	Object (Entity Identifier)	ID of the target entity
Munition ID	munitionID	Object (Entity Identifier)	ID of the munition
Event ID	eventID	Object (Event Identifier)	ID of the detonation event
Velocity	velocity	Object (Vector 3d)	Velocity of the detonation
Location	location	Object (Vector 3d)	Location of the detonation
Detonation Result	detonationResult	Enum (Detonation Result)	Result of the detonation

Display AAR Tutor Request¶

Property Name	JSON Key	Value Type	Description
Events	Events	Array(Object(After Action Review Event (Base)))	The list of events that happened
Fullscreen	fullscreen	Boolean	(optional) If the AAR should be presented in full screen mode on the tutor user interface.

Display Avatar Action¶

Assigned Values: Class = DisplayAvatarAction

Property Name	JSON Key	Value Type	Description
Avatar	avatarData	Object (Avatar Data)	The avatar to display
Avatar Action Type	avatarActionType	String	The class of the avatar action type

Display Chat Window Request¶

Property Name	JSON Key	Value Type	Description
Chat Id	Id	Integer	The unique id of a chat session used to match/sync chat updates and requests together.
Avatar	avatar	Object (Display Avatar Action)	The avatar action to perform
Tutor Name	tutor	String	The name of the tutor, cannot be null
User Name	User	String	The name of the user, cannot be null
Bypass	bypass	Boolean	If the user can bypass the chat before it is complete

Display Chat Window Update Request¶

Property Name	JSON Key	Value Type	Description
Chat Id	Id	Integer	The unique id of a chat session used to match/sync chat updates and requests together.
Avatar Action	action	Object (Display Avatar Action)	The avatar action to perform
Text	text	String	The text that was said by the tutor
Closed	closed	String	If the chat session has been closed

Display Course Init Instructions Request¶

Property Name	JSON Key	Value Type	Description
Gateway State	gwState	String (mil.arl.gift.common.-DisplayCourseInitInstructionsRequest.-GatewayStateEnum)	The enumerated gateway module states related to initializing a course.
Asset URLs	assetURLs	Array (String)	(Optional) Collection of URLs that can be reached by the tutor client and should be downloaded onto the client's computer for use in the current GIFT course execution. Example: Java Web Start Gateway module JNLP file

Display Guidance Tutor Request (Base)¶

Property Name	JSON Key	Value Type	Description
Display Duration	Display_Duration	Integer	(Optional) How long to display the guidance
Fullscreen	Fullscreen	Boolean	(Optional) If the guidance takes up the full screen
Class	Class	String	The class of what type of guidance to give

Display HTML Page Guidance Tutor Request¶

Requires: Display Guidance Tutor Request (Base)
Assigned Values: Class = DisplayHtmlPageGuidanceTutorRequest

Property Name	JSON Key	Value Type	Description
URL	URL	String	The URL of the web page to display
Message	MESSAGE	String	(Optional) A message to display to the user with the web page

Display Learner Actions Tutor Request¶

Property Name	JSON Key	Value Type	Description
Action List	Actions_List	Array (Object (Learner Action))	List of learner actions that the user can take

Display Media Tutor Request¶

Property Name	JSON Key	Value Type	Description
Media List	Media_List	Array (Object (Media Item))	Array of URIs for media to display

Display Scripted Avatar Action¶

Requires: Display Avatar Action (Base)
Assigned Values: Class = DisplayScriptedAvatarAction

Property Name	JSON Key	Value Type	Description
Action	action	String	The key of the action to perform

Display Text Action¶

Property Name	JSON Key	Value Type	Description
Text	text	String	The text to display
Delivery Settings	deliverySettings	String	An XML string that is formatted against the GIFT/config/domain/dkf/dkf.xsd XML element, uniquely, named ‘InTutor’.

Display Text Guidance Tutor Request¶

Requires: Display Guidance Tutor Request (Base)
Assigned Values: Class = DisplayTextGuidanceTutorRequest

Property Name	JSON Key	Value Type	Description
Text	text	String	The text to display

Display Text To Speech Avatar Action¶

Requires: Display Avatar Action (Base)
Assigned Values: Class = DisplayTextToSpeechAvatarAction

Property Name	JSON Key	Value Type	Description
Text	text	String	The text to say

Display Text Tutor Request¶

Property Name	JSON Key	Value Type	Description
Text	Text	String	Text to display
Beep	BeepOnDisplay	Boolean	(Optional) True if a beep sound should be played when displaying the text, false otherwise
Highlight Text	HighlightText	Boolean	(Optional) True if the text to display should be highlighted when displayed, false otherwise
Display Duration	DisplayDuration	Integer	(Optional) How long to display the text before it should be hidden

Domain Option¶

Property Name	JSON Key	Value Type	Description
Domain Name	Domain_Name	String	Name of the domain option
Domain ID	Domain_ID	String	ID of the domain option
Description	description	String	(Optional) description of the domain.
Recommendation	recommendation	Object (Domain Option - Recommendation)	(Optional) information about whether the domain option is recommended, not recommended, or unavailable and why.
Concepts	concepts	List (String)	(Optional) concepts related to the course

Domain Option - Recommendation¶

Property Name	JSON Key	Value Type	Description
Recommendation	type	Enum ( Domain Option - Recommendation )	Enumerated reason on whether the domain option is recommended, not recommended, or unavailable to the user for selection.
Reason	reason	String	(Optional) a description about the reason of the recommendation.
Details	details	String	(Optional) details about the reason for the recommendation.

Domain Option List¶

Property Name	JSON Key	Value Type	Description
Domain Options	DomainOptions	Array (Object (Domain Option))	Array of Domain Option objects

Domain Options Request¶

Property Name	JSON Key	Value Type	Description
Client Info	clientInfo	Object (WebClient Information)	Information about the tutor client
LMS User Name	LMSUsername	String	(Optional) the LMS username for a GIFT user

Domain Selection Request¶

Property Name	JSON Key	Value Type	Description
Domain Runtime id	DomainName	String	The selected domain runtime id which is the path to the course used when taking the course
Domain Sourece id	DomainSource	String	The selected domain source id which is the to the authored course
LMS Username	LmsUsername	String	Name of the learner selecting this domain
Client Info	clientInfo	Object(WebClient Information )	Information about the tutor client

Domain Session¶

Property Name	JSON Key	Value Type	Description
Domain Session ID	dsId	Integer	Unique ID of the newly created domain session
Domain Name	name	String	The course runtime id which is the path to the course used when taking the course
Experiment ID	experimentId	String	(optional) unique experiment id if this domain session is part of an experiment
Domain Source ID	domainSourceId	String	The course source id which is the path to the authored course

Domain Session List¶

Property Name	JSON Key	Value Type	Description
Domain Sessions	DomainSessions	Array (Object (Domain Session))	Array of Domain Session objects

Entity Appearance¶

Property Name	JSON Key	Value Type	Description
Posture	posture	Enum (Posture)	Posture of the entity
Damage	damage	Enum (Damage)	Damage taken by the entity

Entity Identifier¶

Property Name	JSON Key	Value Type	Description
Entity ID	entityID	Integer	Unique ID for entity
Simulation Address	simulationAddress	Object (Simulation Address)	Simulation Address of the entity

Entity State¶

Property Name	JSON Key	Value Type	Description
Entity ID	entityID	Object (Entity Identifier)	Unique ID of the entity
Entity Type	entityType	Object (Entity Type)	Type of the entity
Force ID	forceID	Integer	Identifier of the entity’s force
Linear Velocity	linearVelocity	Object (Vector 3d)	Linear velocity of the entity
Location	location	Object (Point 3d)	Location of the entity
Orientation	orientation	Object (Vector 3d)	Orientation of the entity
Appearance	appearance	Object (Entity Appearance)	Appearance of the entity

Entity Type¶

Property Name	JSON Key	Value Type	Description
Entity Kind	Entity_Kind	Integer	ID of the entity’s kind
Domain	Domain	Integer	ID of the entity’s domain
Country	Country	Integer	ID of the entity’s country
Category	Category	Integer	ID of the entity’s category
Subcategory	Subcategory	Integer	ID of the entity’s subcategory
Specific	Specific	Integer	Entity specific field
Extra	Extra	Integer	Entity extra field

Environment Control¶

Property Name	JSON Key	Value Type	Description
Environment Type	EnvironmentType	Enum (Environment Control)	Type of environment control

Event Identifier¶

Property Name	JSON Key	Value Type	Description
Event ID	eventID	Integer	Unique ID of the event
Simulation Address	simulationAddress	Object (Simulation Address)	Simulation address of the event

Experiment¶

Property Name	JSON Key	Value Type	Description
Experiment ID	Id	String	The unique id of this experiment in this GIFT instance
Experiment Name	Name	String	The non-unique display name of this experiment
Experiment Course Folder	CourseFolder	String	The location of the course folder in GIFT (currently in Domain/Experiments/)
URL	URL	String	The URL for subjects to execute the experiment's course
Author	AuthorUserName	String	The username of the author of the experiment (experimenter)
Description	Description	String	A description about the experiment.
Status	Status	Enum (Experiment Status)	The experiment current status
Subjects	Subjects	List (Experiment Subject)	List of subjects that have started this experiment (can be empty)

Experiment Subject¶

Property Name	JSON Key	Value Type	Description
Subject Id	Id	Experiment Subject Id	The unique id of this subject in an experiment
Start Time	StartTime	String	The start time of the course for this subject instance
End Time	EndTime	String	The end time of the course for this subject instance
Domain Session Message log file name	MessageLogFile	String	The file name of the GIFT domain session message log file for this subject's execution of the experiment's course

Experiment Subject Id¶

Property Name	JSON Key	Value Type	Description
Subject Id	SubjectId	int	The unique id of this subject in a specific experiment. The value could be the same for other subjects in other experiments, therefore you need the experiment id to uniquely identify this user among all GIFT users, subject or not.
Experiment Id	ExperimentId	String	The unique experiment id this subject is apart of

Experiment Course Request¶

Property Name	JSON Key	Value Type	Description
Experiment Id	EXPERIMENT_ID	String	The unique experiment id to retrieve and start it's course for a subject
Client Info	CLIENT_INFO	Object(WebClient Information )	Information about the tutor client
Pre Session Id	PRE_SESSION_ID	String	An id created by the tutor and used to identify the tutor client request to start a subject in an experiment's course.

Filtered Sensor¶

Property Name	JSON Key	Value Type	Description
Filter Name	FilterName	String	Name of the filter used
Sensor Name	SensorName	String	Name of the sensor where the data is coming from
Elapsed Time	ElapsedTime	Long	Total milliseconds from the start of the domain session
Attribute Values	AttributeValues	Map (Enum (Sensor Attribute Name), Sensor Attribute Value)	Attribute/Value pairs that hold the sensor data
Sensor Type	SensorType	Enum(Sensor Type)	Type of sensor

Folder¶

Property Name	JSON Key	Value Type	Description
ID	Folder_Id	Integer	The ID of the folder
Name	Folder_Name	String	The name of the folder

Gateway Module Status¶

Property Name	JSON Key	Value Type	Description
Topic Name	topicName	String	Name of the current topic
Status	status	Object (Module Status)	Status of the Gateway Module

Generic JSON State¶

Property Name	JSON Key	Value Type	Description
Unique id	messageUniqueId	String	A UUID that is unique to the sender.
JSON string	n/a	JSON string	This is a JSON encoded string that is simply added to the JSON payload. There are zero or more keys depending on the JSON string for the Generic JSON state (e.g. {“firingEntityId._entityID”:17}, {“velocity._z”:123.567} )

Get Survey Request¶

Property Name	JSON Key	Value Type	Description
Gift Key	GiftKey	String	Key for the survey being requested
Survey Context ID	SurveyContextId	Integer	Unique ID of the survey context that is associated with the survey being requested
Concepts	Concepts	Map (Concept Parameter)	(Optional) Mapping of concept name to the request details for that concept (e.g. number of questions). This is only needed if the survey being requested in a knowledge concept survey created from a question bank from the survey context.

Get Experiment Request¶

Property Name	JSON Key	Value Type	Description
Experiment Id	ExperimentID	String	Key for the experiment being requested

Graded Score Node¶

Requires: Score Node
Assigned Values: Class = GradedScoreNode

Property Name	JSON Key	Value Type	Description
Node Grade	grade	Enum (Pass Fail)	The score of the node
Children Nodes	children	Map (String, Object (Score Node)	The children of this node

Image Properties¶

Assigned Values: Class = ImageProperties

Initialize Domain Session Request¶

Property Name	JSON Key	Value Type	Description
Course File Name	courseFileName	String	The name of the Course file being used for an entire domain session

Initialize Interop Connections¶

Property Name	JSON Key	Value Type	Description
Interop Connections	interops	Array (String)	The list of interop interface class implementation names (e.g., gateway.interop.dis.DISInterface). Refer to the interopConfig.xml and interopConfig.xsd for more information.
Content Server Address	contentServerAddr	String	The domain module’s content server (currently a jetty instance) address that host’s domain content (e.g. PowerPoint show) used in a GIFT course.

Initialize Pedagogical Model Request¶

Property Name	JSON Key	Value Type	Description
Actions	actions	String	The XML actions element of a Course or DKF that contains action information for the pedagogical module to initialize with.
Course Actions	isCourseActions	Boolean	Whether or not the actions element is from a course (versus a DKF).
Configuration	configuration	String	The content of the configuration xml file that contains information for the pedagogical model to initialize with.

Instantiate Learner Request¶

Property Name	JSON Key	Value Type	Description
LMS Username	LMSUserName	String	LMS username of learner to instantiate
Configuration	configuration	String	The content of the configuration xml file that contains information for the learner model to initialize with.

Intermediate Concept Assessment¶

Requires: Assessment
Assigned Values: Class = IntermediateConceptAssessment

Property Name	JSON Key	Value Type	Description
Concepts	concepts	Array (Assessment (Base))	List of assessment objects. This object allows for theoreticalinfinite nesting of a task/concept hierarchy.

Interop Connections Info¶

Property Name	JSON Key	Value Type	Description
Message Types	types	Array (Message Type Enum)	List of message types the current initialized gateway module interop plugins can receive and handle from GIFT

Learner Action¶

Property Name	JSON Key	Value Type	Description
Type	type	Enum (Learner Action Type)	The type of learner action taken
Name	name	String	The name of the action taken

Learner State Attribute¶

Requires: Learner State Attribute (Base)
Assigned Values: Class = LearnerStateAttribute

Learner State Attribute (Base)¶

Property Name	JSON Key	Value Type	Description
Name	attributeName	Enum (Learner State Attribute Name)	Name of the learner state attribute
Short Term	shortTerm	Enum	Short term state Note: technically any enumeration value will suffice, however only some are properly decoded
Short Term Timestamp	shortTermTimestamp	long	The timestamp at which the short term learner state value was created. Value is epoch time.
Long Term	longTerm	Enum	Long term state Note: technically any enumeration value will suffice, however only some are properly decoded
Long Term Timestamp	longTermTimestamp	long	The timestamp at which the long term learner state value was created. Value is epoch time.
Predicted	predicted	Enum	Predicted state Note: technically any enumeration value will suffice, however only some are properly decoded
Predicted Timestamp	predictedTimestamp	long	The timestamp at which the predicted learner state value was created. Value is epoch time.
Class	learnerStateAttributeType	String	Unique name of a learner state attribute object (Learner State Attribute)

Learner State¶

Property Name	JSON Key	Value Type	Description
Performance State	Performance	Object (Performance State)	Performance State of the learner
Cognitive State	Cognitive	Object (Cognitive State)	Cognitive State of the learner
AffectiveState	Affective	Object (Affective State)	Affective State of the learner

Learner Tutor Action¶

Property Name	JSON Key	Value Type	Description
Action	action	Object ({String: "RadioUsed", String: "ExplosiveHazardSpotReport", String: "NineLineReport", String: "SpotReport", Tutor Me Learner Tutor Action})	Action that is packed in this message

List Option¶

Property Name	JSON Key	Value Type	Description
ID	Id	Integer	The ID of the list option
Text	Text	String	The list option text
Option List ID	Option_List_Id	Integer	The ID of the option list that contains this

LMS Connection Info¶

Property Name	JSON Key	Value Type	Description
Name	name	String	Unique name of the LMS connection.

LMS Course Record¶

Property Name	JSON Key	Value Type	Description
ID	Id	Integer	The course record unique id in the particular LMS.
Domain	domain	String	(optional) The domain name for this record.
Root	root	Object (Graded Score Node)	Scores from the course history.
Date	date	String (Time Stamp)	Date on which the record was created.
LMS Connection	connection	Object (LMS Connection Info)	(Optional) Information about the LMS this record is from.

LMS Course Records¶

Property Name	JSON Key	Value Type	Description
Course History	CourseHistory	Array (Object (LMS Course Record))	Array of course records that represent the course’s history
Assessments	Assessments	Map (String, Enum (Assessment Level))	Map of skills to an overall assessment level

LMS Data Request¶

Property Name	JSON Key	Value Type	Description
Username	UserName	String	Username of the learner from which data should be given
Published Score Responses	publishedResponses	Array (Publish Lesson Score Response)	(Optional: can be empty) The list of published score response objects containing the high level identifiers of LMS data that is being requested.
Page Start Index	PageStart	Integer	The index in the query to start getting scores (Ignored if Score Keys is set)
Page Size	PageSize	Integer	How many scores to return (Ignored if Score Keys is set)
Sort Descending	SortDescending	Boolean	If the scores should be sorted with the newest listed first
Domain names	DomainNames	Array (String)	Used to filter for LMS records on specific domains/courses, can be empty if wanting all records

Line of Sight Query¶

Property Name	JSON Key	Value Type	Description
Locations	locations	Array (Object (Point 3d))	Array of point locations to test Line of Sight on

Line of Sight Result¶

Property Name	JSON Key	Value Type	Description
Locations	locations	Map (Object (Point 3d), Double)	Map from original Line of Sight query locations to visibility percentage

Login Request¶

Property Name	JSON Key	Value Type	Description
User ID	userId	Integer	Unique ID of the user
Username	username	String	The GIFT username of the user (optional in cases where the user doesn’t have a username)

Matrix of Choices Reply Weights¶

Property Name	JSON Key	Value Type	Description
Reply Weights	REPLY_WEIGHTS	List ( List ( double)))	The reply weights for a matrix of choices survey question where the first list is the row index and the inner list is the column index (i.e. [1][3] is the 4th item in the 2nd row using zero-based array indexing).

Media Item¶

Property Name	JSON Key	Value Type	Description
URI	URI	String	URI of the media
Name	Name	String	Name of the media
Class	properties	String	The name of the class of the properties object
Properties		Object (PDF Properties) or Object (Webpage Properties) or Object (Youtube Video Properties ) or Object (Video Properties) or Object (Image Properties)	Properties of the media, at this level of the hierarchy

Metadata Attribute Item¶

Property Name	JSON Key	Value Type	Description
Attribute	attribute	String	A string representation of the metadata XML element from the metadata.xsd.
Priority	priority	Integer	A priority value for this metadata.

Module Allocation Request¶

Property Name	JSON Key	Value Type	Description
Requestor Information	Requestor	Module Status	The module status information for the module requesting that another module be allocated to it.
Allocated Modules	Allocated_Modules	Map (Module Type, Module Status*)	Map of the modules that have already been allocated to the requesting module. This information can be used for sharing the same modules for a Domain Session.

*If the Module Type is equal to Gateway Module then the Module Type is mapped to the Gateway Module Status instead.

Module Allocation Reply¶

Property Name	JSON Key	Value Type	Description
Request denied information	RequestDenied	String	(optional) indicates why the module allocation request could not be satisfied.
Additional Information	AdditionalInfo	String	(optional) provided additional information about why the request could not be satisfied. This is useful for providing help or developer details.

Module Status¶

Property Name	JSON Key	Value Type	Description
Module Name	Module_Name	String	Name of the module to report status
Queue Name	Queue_Name	String	Name of the queue to send status to
Module Type	Module_Type	Enum (Module Type)	Type of module the status is about
Module State	State	Enum (Module State)	Type of state the module is in currently

NACK¶

Property Name	JSON Key	Value Type	Description
Error Enumeration	Error_Enum	Enum (Error)	Type of error this NACK is responding with
Error Message	Error_Msg	String	Message that describes the error
Help	Help	String	(optional) a help message for the user to resolve the error.

Number Payload¶

Property Name	JSON Key	Value Type	Description
Number	NumberPayload	Number	The number value

Option List¶

Property Name	JSON Key	Value Type	Description
ID	Id	Integer	The ID of the option list
Name	Name	String	The name of the option list
Is Shared	Is Shared	Boolean	If the option list is shared among questions
Options	List_Options	Array (List Option)	The list of options for this list, in the order which they are presented
Visible to Usernames	VisibleToUserNames	Array (String)	The usernames this option list is visible to
Editable to Usernames	EditableToUserNames	Array (String)	The usernames that can edit this option list

PDF Properties¶

Assigned Values: Class = PDFProperties

Pedagogical Request¶

Property Name	JSON Key	Value Type	Description
ID	id	Integer	Performance node ID associated with this request
Name	name	String	Performance node name associated with this request
Class	requestType	String	Unique name of a pedagogical request object (Request-Instructional-Intervention, Request Performance Assessment, Request Scenario Adaptation) or “BranchAdpatationStrategy”
Request object	n/a	One of Request-Instructional-Intervention, Request Performance Assessment, Request Scenario Adaptation, Request Branch Adaptation	The attributes based on the object type

Pedagogical Requests¶

Property Name	JSON Key	Value Type	Description
Requests	Requests	Array (Pedagogical Request)	Array of requests

Performance Assessment¶

Property Name	JSON Key	Value Type	Description
Tasks	tasks	Array (Object (Task Assessment))	Array of task assessments for overall performance

Performance State Attribute¶

Requires: Performance State Attribute (Base)
Assigned Values: Class = PerformanceStateAttribute

Performance State Attribute (Base)¶

Property Name	JSON Key	Value Type	Description
Name	attributeName	String	Name of the learner performance state attribute
Short Term	shortTerm	Enum (Assessment Level)	Short term assessment
Short Term Timestamp	shortTermTimestamp	long	The timestamp at which the short term performance state value was created. Value is epoch time.
Long Term	longTerm	Enum (Assessment Level)	Long term assessment
Long Term Timestamp	longTermTimestamp	long	The timestamp at which the long term performance state value was created. Value is epoch time.
Predicted	predicted	Enum (Assessment Level)	Predicted assessment
Predicted Timestamp	predictedTimestamp	long	The timestamp at which the predicted performance state value was created. Value is epoch time.
ID	id	Integer	Unique performance node ID that maps to this attribute
Priority	Priority	Integer	(Optional) the current priority value of the performance assessment node. Priority can be used to filter pedagogical strategies.
Class	performanceStateAttributeType	String	Unique name of a performance state attribute object (Performance State Attribute)

Performance State¶

Property Name	JSON Key	Value Type	Description
Tasks	tasks	Map (Integer, Object (Task Performance State))	Map from node ID to task performance states

Play Audio Action¶

Property Name	JSON Key	Value Type	Description
MP3 File	mp3File	String	The URL of the MP3 file to play
OGG File	oggFile	String	(Optional) The URL of the OGG file to play

Point 3d¶

Property Name	JSON Key	Value Type	Description
X	X	Double	X coordinate of this point
Y	Y	Double	Y coordinate of this point
Z	Z	Double	Z Coordinate of this point

PowerPoint State¶

Property Name	JSON Key	Value Type	Description
Slide Index	slideIndex	Integer	The current slide index in the active PowerPoint show
Slide Count	slideCount	Integer	Total number of slides in the active PowerPoint show
Error Message	errorMsg	String	The error that the message describes

Publish Lesson Score Request¶

Property Name	JSON Key	Value Type	Description
LMS Username	LMSUserName	String	Username of learner to publish the score from
CourseData	CourseData	Object (LMS Course Record)	Course record that contains the score

Publish Lesson Score Response¶

Property Name	JSON Key	Value Type	Description
Records	records	Map (LMS Connection Info, Integer)	A map of unique identifiers for the score record written for each LMS connection for a single publish lesson score request message.

Question¶

Property Name	JSON Key	Value Type	Description
ID	Id	Integer	The ID of the question
Text	Question_Text	String	The question being asked
Reply Type	Type	Enum (Question Type)	The type of question this is
Properties	Properties	Map (Enum (Survey Property Key), Object (Survey Item Property Value))	The properties of this question
Categories	Categories	Array (Category)	The categories associated with this question
Visible to Usernames	VisibleToUserNames	Array (String)	The usernames this question is visible to
Editable to Usernames	EditableToUserNames	Array (String)	The usernames that can edit this question

Question Answer Score¶

Requires: Answer Score (Base)
Assigned Values: Class = QuestionAnswerScore

Property Name	JSON Key	Value Type	Description
Reply Scores	Reply_Scores	Array (Object (Answer Score (Base)))	The reply scores for the question

Question Scale Score¶

Requires: Scale Score (Base)
Assigned Values: Class = QuestionScaleScore

Property Name	JSON Key	Value Type	Description
Reply Scores	Reply_Scores	Array (Object (Scale Score (Base)))	The reply scores for the question

Question Scorer¶

Property Name	JSON Key	Value Type	Description
Total	Total	boolean	Whether this question should be included in total scoring
Attribute Scorer	Attribute_Scorers	List ( Object (Attribute Scorer Properties))	The scoring information for the list of attributes to be evaluated and score upon

Question Response¶

Property Name	JSON Key	Value Type	Description
ID	Question_Response_Id	Integer	The ID of the question response
Text	Response_Text	String	The response to the question
Text Option List	Text_Option_List	Object (Option List)	(Optional) The option list the response text came from
Row Text	Row_Text	String	(Optional) The text of the row the response is for
Row Text Option List	Row_Text_Option_List	Object (Option List)	(Optional) The option list the row text came from
Survey Question	Survey_Question	Object (Survey Question)	The survey question the response is for
Survey Page Response ID	Survey_Page_Response_Id	Integer	The ID of the survey page response that contains this response
Answer Time	Answer_Time	String (Time Stamp)	The time the question was answered

Question Type Parameter¶

Property Name	JSON Key	Value Type	Description
Number of Questions	numberOfQuestions	Integer	The number of questions to request for a particular concept
Property Value	propertyValue	String	The value for the property to match
Question Property Key	questionProperty	String (Survey Property Key)	The enumerated question property the value is associated with.

Raw Score¶

Property Name	JSON Key	Value Type	Description
Units	units	String	Value to describe the score’s units (seconds, meters, etc.)
Class	type	String	Unique name of a raw score object (Default Raw Score )
		One of Default Raw Score

Raw Score Node¶

Requires: Score Node
Assigned Values: Class = RawScoreNode

Property Name	JSON Key	Value Type	Description
Assessment	assessment	Enum (Assessment Level)	Assessment for this node
Raw Score	rawScore	Object (Raw Score)	Raw Score that is packed in this node

Reply Answer Score¶

Requires: Answer Score (Base)
Assigned Values: Class = ReplyAnswerScore

Reply Scale Score¶

Requires: Scale Score (Base)
Assigned Values: Class = ReplyScaleScore

Request Branch Adaptation¶

Requires: Pedagogical Request
Assigned Values: Class = RequestBranchAdaptation

Property Name	JSON Key	Value Type	Description
Strategy	strategy	Object (Branch Adaptation Strategy)	Branch Adaptation strategy information.

Request Instructional Intervention¶

Requires: Pedagogical Request
Assigned Values: Class = RequestInstructionalIntervention

Property Name	JSON Key	Value Type	Description
Strategy	strategy	String	Domain Action Knowledge strategy name

Request Performance Assessment¶

Requires: Pedagogical Request
Assigned Values: Class = RequestPerformanceAssessment

Property Name	JSON Key	Value Type	Description
Strategy	strategy	String	Domain Action Knowledge strategy name

Request Scenario Adaptation¶

Requires: Pedagogical Request
Assigned Values: Class = RequestScenarioAdaptation

Property Name	JSON Key	Value Type	Description
Strategy	strategy	String	Domain Action Knowledge strategy name

Return Value Condition¶

Property Name	JSON Key	Value Type	Description
Sign	Sign	Enum (Operator)	The mathematical operator to apply to the condition
Value	Value	double	The fixed value for the condition to score against
Return Value	Return_Value	Enum ( A value from any GIFT Enum class )	The enumerated value to return when this condition is met
Return Value Class	Return_Value_Class	String	The GIFT enum class name that contains the ‘Return_Value’ enumerated value.

Rifle Shot¶

Property Name	JSON Key	Value Type	Description
Location	location	Point 3d	Location of the rifle shot hit location on the target (z-value not used)
Result	result	float	Score value for this rifle shot
Shot Number	shotNumber	int	Index number of this shot

Scale Score (Base)¶

Requires: Score (Base)
Assigned Values: Class = AbstractScaleScore

Property Name	JSON Key	Value Type	Description
Class	scaleScoreType	String	The class of the scale score object

Score (Base)¶

Property Name	JSON Key	Value Type	Description
Class	scoreType	String	The class of the score type object

Score Node¶

Property Name	JSON Key	Value Type	Description
Name	Name	String	Name of the performance node
Class	Type	String	Unique name of a score node object (Graded Score Node, Raw Score Node)
the node attributes	n/a	One of Graded Score Node, Raw Score Node	contains the attributes of the node object

Sensor Attribute Value¶

Property Name	JSON Key	Value Type	Description
Name	name	Enum (Sensor Attribute Name)	Name of the sensor attribute
Class	attributeValue	String	Unique name of a sensor attribute object (Sensor Double Value, Sensor Integer Value, Sensor String Value, Sensor Tuple3d Value)
the attribute object	n/a	One of Sensor Double Value, Sensor Integer Value, Sensor String Value, Sensor Tuple3d Value	The values of a sensor attribute object.

Sensor Double Value¶

Requires: Sensor Attribute Value
Assigned Values: Class = DoubleValue

Property Name	JSON Key	Value Type	Description
value	value	Double	A double value.

Sensor Status¶

Property Name	JSON Key	Value Type	Description
Message	Message	String	The sensor status message
Sensor Name	SensorName	String	Name of the sensor that produced the error
Sensor Type	SensorType	Enum ( Sensor Type)	The type of sensor
Is Error	IsError	Boolean	If the status is an error message

Sensor File Created¶

Property Name	JSON Key	Value Type	Description
File name	FileName	String	Name of the file created
Sensor Type	SensorType	Enum (Sensor Type)	The type of sensor

Sensor Integer Value¶

Requires: Sensor Attribute Value
Assigned Values: Class = IntegerValue

Property Name	JSON Key	Value Type	Description
value	value	Integer	An integer value.

Sensor String Value¶

Requires: Sensor Attribute Value
Assigned Values: Class = StringValue

Property Name

JSON Key

Value Type

Description

Property Name

value

value

String

A string value.

Sensor Tuple3d Value¶

Requires: Sensor Attribute Value
Assigned Values: Class = Tuple3dValue

Property Name	JSON Key	Value Type	Description
X	X	Double	The X value as a double.
Y	Y	Double	The Y value as a double.
Z	Z	Double	The Z value as a double.
Class	type	String	Unique name of the tuple3d object (“Vector3d”, “Point3d”)

Siman¶

Property Name	JSON Key	Value Type	Description
Siman Type	Siman_Type	Enum (Siman Type)	The type of Siman message
Load Arguments	LoadArgs	Map (String, String)	A key/value pair map of the Siman Load parameters. The keys are interop plugin class names (e.g. gateway.interop.ppt.PPTInterface). The values are string representations of the course XML node object ‘generated.course.InteropInputs’ (see GIFT\config\domain\course\course.xsd for XML structure).
Course Folder	CourseFolder	String	The type of Siman message	(optional) runtime course folder path relative to Domain folder
File Size	FileSize	long	(optional) size (bytes) of a training application file to load on the client side

Simple Example State¶

Property Name	JSON Key	Value Type	Description
Variable	VAR	String	Just a string value that represents something about a simple game state. This was created for the GIFT developer guide as a simple use case of a game state message.

Simulation Address¶

Property Name	JSON Key	Value Type	Description
Site ID	siteID	Integer	Unique site ID for this address
Application ID	applicationID	Integer	Unique ID for this address

Slider Range¶

Property Name	JSON Key	Value Type	Description
Min Value	MIN_VALUE	Double	The minimum value of the slider for a survey question
Max Value	MAX_VALUE	Double	The maximum value of the slider for a survey question

Start Resume¶

Real Time	realWorldTime	Integer	The real-world time (UTC, milliseconds since midnight Jan 1, 1970) at which the entity is to start/resume in the exercise.
Simulation Time	simulationTime	Integer	The simulation time (time of day in the simulated world in UTC, milliseconds since midnight Jan 1, 1970) at which the entity will start/resume in the exercise
Request ID	requestID	Integer	Unique ID for this request

Stop Freeze¶

Property Name	JSON Key	Value Type	Description
Real Time	realWorldTime	Integer	The real-world time (UTC, milliseconds since midnight Jan 1, 1970) at which the entity is to start/resume in the exercise.
Reason	reason	Integer	ID for the reason that an entity or exercise was stopped/frozen
Frozen Behavior	frozenBehavior	Integer	ID for the frozen behavior, that will indicate how the entity or exercise acts while frozen
Request ID	requestID	Integer	Unique ID for this request

String Payload¶

Property Name	JSON Key	Value Type	Description
String	StringPayload	String	The string value as the entire payload.

Subject Created¶

Property Name	JSON Key	Value Type	Description
Course Id	courseId	String	A unique identifier for the experiment's course (usually the relative path to the course.xml file from the Domain folder)
Pre Session Id	preSessionId	String	An id created by the tutor and used to identify the tutor client request to start a subject in an experiment's course.

Submit Survey Results¶

Property Name	JSON Key	Value Type	Description
Survey Response	SurveyResponse	Object (Survey Response)	The response to the survey with the results
Gift Key	GiftKey	String	Label for the survey being submitted

Survey¶

Property Name	JSON Key	Value Type	Description
ID	Id	Integer	The ID of the survey
Name	Name	String	The name of the survey
Folder	Folder	Object (Folder)	The folder the survey is in (this should not be defined if it is not in a folder)
Pages	Survey_Pages	Array (Survey Page)	The pages of the survey, in the order in which they are to be presented
Properties	Properties	Map (Enum (Survey Property Key), Object (Survey Item Property Value))	The properties of the survey
Visible to Usernames	VisibleToUserNames	Array (String)	The usernames this survey is visible to
Editable to Usernames	EditableToUserNames	Array (String)	The usernames that can edit this survey

Survey Answer Score¶

Requires: Answer Score (Base)
Assigned Values: Class = SurveyAnswerScore

Property Name	JSON Key	Value Type	Description
Question Scores	Question_Scores	Array (Object (Answer Score (Base)))	The reply scores for the survey

Survey Check Request¶

Property Name	JSON Key	Value Type	Description
GIFT Key	GiftKey	String	(optional if this check is for a survey context and not a survey in the context) Label for the survey being checked.
Survey Context Id	SurveyContextId	Integer	Unique id of a survey context associated with the GIFT key and questions to check.
Questions	Questions	List (Object ( Survey Check Request - Question ))	List of question objects to check in this request.

Survey Check Request - Question¶

Property Name	JSON Key	Value Type	Description
Question ID	id	Integer	The ID of the question
Replies	Replies	List (Object ( Survey Check Request - Reply ))	List of reply objects for this question to check in this request.

Survey Check Request - Reply¶

Property Name	JSON Key	Value Type	Description
Reply ID	id	Integer	The ID of the question reply

Survey Check Response¶

Property Name	JSON Key	Value Type	Description
Responses	responses	Map ( String , List ( Object ( Survey Check Response - Response Interface ) ) )	Map of survey check responses where the key provides useful information about what the list of responses are for (e.g. a course name).

Survey Check Response - Response Interface¶

Property Name	JSON Key	Value Type	Description
Type	type	String	The class of the value object (e.g. FailureResponse) that implements Response interface.
Responses	responses	One of ( Survey Check Response - Failure Response, Survey Check Response - Success Response )	The responses to the Survey Check Request

Survey Check Response - Failure Response¶

Requires: Survey Check Response - Response Interface
Assigned Values: Class = FailureResponse

Property Name	JSON Key	Value Type	Description
Message	message	String	The reason why the survey check request failed.

Survey Context¶

Property Name	JSON Key	Value Type	Description
Survey Context ID	Survey_Context_Id	Integer	The ID of the survey context
Survey Context Name	Survey_Context_Name	String	The name of the survey context
Survey Context Surveys	Survey_Context_Surveys	Array (Object(Survey Context Survey))	The surveys contained in this survey context
Visible to Usernames	VisibleToUserNames	Array (String)	The usernames this survey is visible to
Editable to Usernames	EditableToUserNames	Array (String)	The usernames that can edit this survey

Survey Context Survey¶

Property Name	JSON Key	Value Type	Description
Survey Context id	Survey_Context_Context_Id	Integer	The ID of the survey context
Survey Context survey key	Survey_Context_Survey_Key	String	The gift key, unique to this survey context, that references this survey in the survey context.
Survey Context Survey	Survey_Context_Survey_Survey	Object(Survey)	The survey for this key

Survey Check Response - Success Response¶

Requires: Survey Check Response - Response Interface
Assigned Values: Class = SuccessResponse

Survey List Check Request¶

Property Name	JSON Key	Value Type	Description
Requests	request	Map ( String , List ( Object ( Survey Check Request ) ) )	Map of survey check requests where the key provides useful information about what the list of requests are for (e.g. a course name).

Survey Item Property Value¶

Property Name	JSON Key	Value Type	Description
Class	Property_Class	String	The class of the value object
Value	Property_Value	Object (One of Option List, String Payload, Survey Scorer, Question Scorer, Slider Range, Matrix of Choices Reply Weights)	The value of the property

Survey Feedback Scorer (Base)¶

Requires: Score (Base)
Assigned Values: Class = SurveyFeedbackScorer

Property Name	JSON Key	Value Type	Description
nothing

Survey Scale Score¶

Requires: Scale Score (Base)
Assigned Values: Class = SurveyScaleScore

Property Name	JSON Key	Value Type	Description
Question Scores	Question_Scores	Array (Object (Scale Score (Base)))	The reply scores for the survey

Survey Scorer¶

Property Name	JSON Key	Value Type	Description
Total Scorer	Total_Scorer	Object (Total Scorer)	The scoring information for calculating the total score
Attribute Scorer	Attribute_Scorers	List ( Object (Attribute Scorer Properties))	The scoring information for the list of attributes to be evaluated and score upon

Survey Page¶

Property Name	JSON Key	Value Type	Description
ID	Survey_Page_Id	Integer	The ID of the survey page
Name	Survey_Page_Name	String	The name of the survey page
Survey ID	Survey_Page_Survey_Id	Integer	The ID of the survey page’s parent survey
Questions	Survey_Page_Questions	Array (Survey Question)	The survey questions in the page, in the order they are to be presented in
Properties	Properties	Map (Enum (Survey Property Key), Object (Survey Item Property Value))	The properties of the survey page

Survey Page Response¶

Property Name	JSON Key	Value Type	Description
ID	Survey_Page_Response_Id	Integer	The ID of the response
Survey Response ID	Survey_Response_Id	Integer	The ID of the survey response this page is in
Survey Page	Survey_Page	Object (Survey Page)	The survey page the response is for
Start Time	Start_Time	String (Time Stamp)	The time the survey page was started
End Time	End_Time	String (Time Stamp)	The time the survey page was completed
Question Responses	Question_Responses	Array (Question Response)	The list of responses to questions in the survey page

Survey Question¶

Property Name	JSON Key	Value Type	Description
ID	ID	Integer	The ID of the survey question
Question	Question	Object (Question)	The question that is being asked
Survey Page ID	Survey_Page_Id	Integer	The ID of the survey question’s parent survey page
Properties	Properties	Map (Enum (Survey Property Key), Object (Survey Item Property Value))	The properties of the survey question

Survey Response¶

Property Name	JSON Key	Value Type	Description
ID	Survey_Response_Id	Integer	The ID of the survey response
User ID	User_Id	Integer	The ID of the user that responded to the survey
Survey	Survey	Object (Survey)	The survey that was responded to
Survey Context ID	Survey_Context_Id	Integer	The ID of the survey context that the survey response belongs to
Domain Session ID	Domain_Session_Id	Integer	The ID of the domain session the survey response is in
Start Time	Start_Time	String (Time Stamp)	The time the survey was started
End Time	End_Time	String (Time Stamp)	The time the survey was completed
Survey Page Responses	Survey_Page_Responses	Array (Survey Page Response)	The list of responses to pages in the survey
Experiment ID	ExperimentId	String	(optional) the experiment id if the user answer the survey is a subject in an experiment.

Task Assessment¶

Requires: Assessment (Base)
Assigned Values: Class = TaskAssessment

Task Performance State¶

Property Name	JSON Key	Value Type	Description
State	state	Object(Performance State Attribute)	Performance state of the task
Concepts	concepts	Map ( Integer, Object (Concept Performance State))	Map from concepts IDs to the Performance State of that concept

Total Scorer¶

Property Name	JSON Key	Value Type	Description
Attribute Properties	Attribute_Properties	List ( Object (Attribute Scorer Properties))	The scoring information for the list of attributes to be evaluated and score upon

Tutor Me Learner Tutor Action¶

Property Name	JSON Key	Value Type	Description
Action Name	action	String	the unique name of the action to use as a key to apply the action during the course

Tutor User Interface Feedback¶

Property Name	JSON Key	Value Type	Description
Display Text Action	DisplayTextAction	Object (Display Text Action)	(Optional) The text to display as feedback
Play Audio Action	PlayAudioAction	Object (Play Audio Action)	(Optional) The audio to display as feedback
Display Avatar Action	DisplayAvatarAction	Object (Display Avatar Action)	(Optional) The avatar action to take as feedback
Clear Text Action	ClearTextAction	Object (Clear Text Action)	(Optional) Whether to clear previous text feedback from the TUI before presenting this feedback

Unfiltered Sensor Data¶

Property Name	JSON Key	Value Type	Description
Sensor Name	SensorName	String	Name of the sensor the data is coming from
Sensor Type	SensorType	Enum (Sensor Type)	Type of sensor the data is coming from
Elapsed Time	ElapsedTime	Long	Total milliseconds from the start of the domain session
Attribute Values	AttributeValues	Map ( Enum (Sensor Attribute Name), Sensor Attribute Value)	Name/Value pairs that represent the sensor’s data

User Data¶

Property Name	JSON Key	Value Type	Description
User ID	User_Id	Integer	Unique ID of the user (optional in cases where the user id hasn’t been created yet)
Username	Username	String	The GIFT username of the user (optional in cases where the user doesn’t have a username)
Gender	Gender	Enum (Gender)	Gender of the user
LMS Username	LMS_UserName	String	LMS username of the user
Experiment Id	ExperimentId	String	(optional) the id of an experiment if this user is a subject in an experiment.

User Session¶

Property Name	JSON Key	Value Type	Description
User ID	userId	Integer	ID of the user to associate with this domain session
Username	username	String	The GIFT username of the user (optional in cases where the user doesn’t have a username)
Experiment ID	experimentId	String	(optional) unique experiment id if this domain session is part of an experiment
Client Info	clientInfo	Object (WebClient Information)	Information about the tutor client

User Session List¶

Property Name	JSON Key	Value Type	Description
User Sessions	UserSessions	Array (Object (User Session))	Array of User Session objects

Vector 3d¶

Property Name	JSON Key	Value Type	Description
X	X	Double	X value of the vector
Y	Y	Double	Y value of the vector
Z	Z	Double	Z value of the vector

Video Properties¶

Assigned Values: Class = VideoProperties

Weapon Fire¶

Property Name	JSON Key	Value Type	Description
Firing Entity ID	firingEntityID	Object (Entity Identifier)	ID of the firing entity
Target Entity ID	targetEntityID	Object (Entity Identifier)	ID of the target entity
Munition ID	munitionID	Object (Entity Identifier)	ID of the munition
Event ID	eventID	Object (Event Identifier)	ID of the detonation event
Velocity	velocity	Object (Vector 3d)	Velocity of the detonation
Location	location	Object (Vector 3d)	Location of the detonation
Burst Descriptor	burstDescriptor	Object (Burst Descriptor)	Description of the weapon fire

WebClient Information¶

Property Name	JSON Key	Value Type	Description
Client Address	clientAddress	String	The address (e.g. IPv4) of the tutor client.

Webpage Properties¶

Assigned Values: Class = WebpageProperties

Youtube Video Properties¶

Assigned Values: Class = YoutubeVideoProperties

Property Name	JSON Key	Value Type	Description
Height	height	Integer	The height of the video
Width	width	Integer	The width of the video
Fullscreen	fullscreen	String {true, false from generated.course.BooleanEnum}	If the video should be displayed fullscreen

GIFT Enumerations¶

Arousal Level¶

Element Name	Element Value	Description
Unknown	Unknown
Low	Low
Medium	Medium
High	High

Assessment Level¶

Element Name	Element Value	Description
Below Expectation	BelowExpectation
At Expectation	AtExpectation
Above Expectation	AboveExpectation
Unknown	Unknown

Damage¶

Element Name	Element Value	Description
Healthy	Healthy
Died of Wounds	DiedOfWounds
Incapacitated	Incapacitated

Detonation Result¶

Element Name	Element Value	Description
Other	Other
Entity Impact	EntityImpact
None	None

Domain Option Recommendation Enum¶

Element Name	Element Value	Description
Unavailable - Other	UnavailableOther
Unavailable - Survey Validation	UnavailableSurveyValidation
Unavailable - Restricted to User	UnavailableRestrictedToUser
Recommended	Recommended
Not Recommended	NotRecommended

Engagement Level¶

Element Name	Element Value	Description
Unknown	Unknown
Low	Low
Medium	Medium
High	High

Environment Control Enum¶

Element Name	Element Value	Description
Overcast	Overcast
Fog Level 1	FogLevel1
Fog Level 2	FogLevel2
Fog Level 3	FogLevel3
Fog Level 4	FogLevel4
Rain	Rain
Time of Day Dusk	TimeOfDayDusk
Time of Day Dawn	TimeOfDayDawn
Time of Day Midday	TimeOfDayMidday
Time of Day Midnight	TimeOfDayMidnight

Error Type¶

Element Name	Element Value	Description
Malformed Data Error	MalformedDataError
User Not Found Error	UserNotFoundError
Database Insert Error	DBInsertError
Database Update Error	DBUpdateError
Incorrect Credentials	IncorrectCredentials
LMS Retrieve Error	LMSRetrieveError
Learner Instantiated Error	LearnerInstantiatedError
Domain Session Not Found Error	DomainSessionNotFoundError
Message Timeout Error	MessageTimeOutError
Operation Failed	OperationFailedError
Module Not Found	ModuleNotFound
Unhandled Message Error	UnhandledMessageError
Get Survey Error	GetSurveyError

Experiment Status¶

Element Name	Element Value	Description
Running	RUNNING
Paused	PAUSED	The experimenter has paused the experiment, meaning no additional subjects can start the experiment while it is in this state.
Invalid Course	INVALID_COURSE	The course is currently invalid. This means that no additional subjects can start the experiment while the course is invalid.

Filter Type¶

Element Name	Element Value	Description
Raw	RAW

Gender¶

Element Name	Element Value	Description
Male	MALE
Female	FEMALE

Learner Action Type¶

Element Name	Element Value	Description
Explosive Hazard Spot Report	EXPLOSIVE_HAZARD_SPOT_REPORT
Nine Line Report	NINE_LINE_REPORT
Spot Report	SPOT_REPORT
Radio	RADIO

Learner State Attribute Name¶

Element Name	Element Value	Description
Engagement	Engagement
Understanding	Understanding
Arousal	Arousal
Long Term Excitement	LongTermExcitement
Short Term Excitement	ShortTermExcitement
Meditation	Meditation
Frustration	Frustration
Motivation	Motivation
Prior Knowledge	PriorKnowledge
Socio-Economic Status	SocioEconomicStatus
Locus of Control	LocusOfControl
Learner Ability	LearnerAbility
General Intelligence	GeneralIntelligence
Learning Style	LearningStyle

Low Medium High Level¶

Element Name	Element Value	Description
Unknown	Unknown
Low	Low
Medium	Medium
High	High

Message Encoding Type¶

Element Name	Element Value	Description
JSON	JSON

Message Type¶

Element Name	Element Value	Description
ACK	ACK
Active Domain Sessions Reply	ActiveDomainSessionsReply
Active Domain Sessions Request	ActiveDomainSessionsRequest
Active User Sessions Reply	ActiveUserSessionsReply
Active User Sessions Request	ActiveUserSessionsRequest
Chat Log	ChatLog
Close Domain Session Request	CloseDomainSessionRequest
Collision	Collision
Course State	CourseState
Detonation	Detonation
Display AAR Tutor Request	DisplayAarTutorRequest
Display Chat Window Request	DisplayChatWindowRequest
Display Chat Window Update Request	DisplayChatWindowUpdateRequest
Display Feedback Tutor Request	DisplayFeedbackTutorRequest
Display Feedback Gateway Request	DisplayFeedbackGatewayRequest
Display Learner Actions Tutor Request	DisplayLearnerActionsTutorRequest
Display Lesson Material Tutor Request	DisplayLessonMaterialTutorRequest
Display Survey Tutor Request	DisplaySurveyTutorRequest
Display Guidance Tutor Request	DisplayGuidanceTutorRequest
Domain Options Request	DomainOptionsRequest
Domain Options Reply	DomainOptionsReply
Domain Selection Request	DomainSelectionRequest
Domain Selection Reply	DomainSelectionReply
Domain Session Start Time Request	DomainSessionStartTimeRequest
Domain Session Start Time Reply	DomainSessionStartTimeReply
Entity State	EntityState
Environment Control	EnvironmentControl
Experiment Course Request	ExperimentCourseRequest
Gateway Module Status	GatewayModuleStatus
Generic JSON State	GenericJSONState
Get Experiment Request	GetExperimentRequest
Get Experiment Reply	GetExperimentReply
Get Survey Reply	GetSurveyReply
Get Survey Request	GetSurveyRequest
Initialize Domain Session Request	InitializeDomainSessionRequest
Initialize Interop Connections	InitializeInteropConnections
Initialize Lesson Request	InitializeLessonRequest
Initialize Pedagogical Model Request	InitializePedagogicalModelRequest
Instantiate Learner Request	InstantiateLearnerRequest
Kill Module	KillModule
Learner Tutor Action	LearnerTutorAction
Learner State	LearnerState
Lesson Completed	LessonCompleted
Lesson Started	LessonStarted
LMS Data Reply	LMSDataReply
LMS Data Request	LMSDataRequest
Login Reply	LoginReply
Logout Reply	LogoutReply
Logout Request	LogoutRequest
Line of Sight Query	LoSQuery
Line of Sight Result	LoSResult
Module Allocation Reply	ModuleAllocationReply
Module Allocation Request	ModuleAllocationRequest
Module Status	ModuleStatus
NACK	NACK
New User Request	NewUserRequest
Pedagogical Request	PedagogicalRequest
Performance Assessment	PerformanceAssessment
Publish Lesson Score Request	PublishLessonScoreRequest
Publish Lesson Score Reply	PublishLessonScoreReply
Processed ACK	ProcessedACK
Processed NACK	ProcessedNACK
Rifle Shot	RifleShot
Sensor Data	SensorData
Sensor Status	SensorStatus
Sensor File Created	SensorFileCreated
Sensor Filter Data	SensorFilterData
Siman	Siman
Simple Example State	SimpleExampleState
Start Domain Session	StartDomainSession
Start Resume	StartResume
Stop Freeze	StopFreeze
Subject Created	SubjectCreated	Used to indicate that a subject in an experiment was created.
Submit Survey Results	SubmitSurveyResults
Survey Check Request	SurveyCheckRequest
Survey Check Response	SurveyCheckResponse
User ID Request	UserIdRequest
User ID Reply	UserIdReply
Weapon Fire	WeaponFire

Merrill Quadrant¶

Element Name	Element Value	Description
Rule	Rule
Example	Example
Recall	Recall
Practice	Practice

Metadata Attribute¶

Element Name	Element Value	Description
IMI 1	IMI1
IMI 2	IMI2
IMI 3	IMI3
IMI4	IMI4
Visual	Visual
Textual	Textual
Visual with Text	Visual with Text
Video	Video
Animation	Animation
Easy Difficulty	Easy Difficulty
Medium Difficulty	Medium Difficulty
Hard Difficulty	Hard Difficulty
Low Control	Low Control
Medium Control	Medium Control
High Control	High Control
Case Study	Case Study
Graphic	Graphic
Worked Example	Worked Example
Multiple Choice	Multiple Choice
Short Response	Short Response
Essay Response	Essay Response
LSA	LSA
Item Response	Item Response
Concept Progression As Needed	Concept Progression As Needed
Feedback Frequency Question by Question	Feedback Frequency Question by Question
Feedback Frequency Following All items	Feedback Frequency Following All Items
Training Type Procedure Execution	Training Type Procedure Execution
Training Type Problem Solving	Training Type Problem Solving
Guidance Hints	Guidance Hints
Guidance Prompts	Guidance Prompts
Guidance Reflection	Guidance Reflection
Guidance Assertions	Guidance Assertions
Guidance Pumps	Guidance Pumps
Training Feedback Realtime	Training Feedback Realtime
Training Feedback AAR	Training Feedback AAR

Module State¶

Element Name	Element Value	Description
UNKNOWN	Unknown	The state is not known or not provided
NORMAL	Normal	The module is behaving normally
OVERLOADED	Overloaded	The module is overloaded at this time
FAILED	Failed	The module has reached a critical failure state and is no longer executing properly.

Module Type¶

Element Name	Element Value	Description
UMS Module	UMS_Module
LMS Module	LMS_Module
DMS Module	DMS_Module
Tutor Module	Tutor_Module
Learner Module	Learner_Module
Pedagogical Module	Pedagogical_Module
Sensor Module	Sensor_Module
Gateway Module	Gateway_Module
Domain Module	Domain_Module
Monitor Module	Monitor_Module

Operator¶

Element Name	Element Value	Description
Less Than	LessThan
Greater Than	GreaterThan
Less Than or Equals	LessThanEquals
Greater Than or Equals	GreaterThanEquals
Equals	Equals

Pass Fail¶

Element Name	Element Value	Description
Pass	PASS
Fail	FAIL
Unknown	UNKNOWN
Incomplete	INCOMPLETE

Posture¶

Element Name	Element Value	Description
Unused	Unused
Standing	Standing
Walking	Walking
Running	Running
Kneeling	Kneeling
Prone	Prone
Crawling	Crawling
Swimming	Swimming
Parachuting	Parachuting
Jumping	Jumping
Sitting	Sitting
Squatting	Squatting
Crouching	Crouching
Wading	Wading
Surrender	Surrender
Detained	Detained

Question State¶

Element Name	Element Value	Description
Answered Correct	AnsweredCorrect
Answered Wrong	AnsweredWrong
Skipped	Skipped
Unanswered	Unanswered

Score Node Type¶

Element Name	Element Value	Description
Graded Score Node	GradedScoreNode
Raw Score Node	RawScoreNode

Sensor Attribute Name¶

Element Name	Element Value	Description
Time	Time
Temperature	Temperature
Humidity	Humidity
Arousal	Arousal
Acceleration 3D X	Acceleration3d
Electro Dermal Activity	EDA
Long Term Excitement	LongTermExcitement
Short Term Excitement	ShortTermExcitement
Meditation	Meditation
Frustration	Frustration
Engagement	Engagement
ED Counter	ED_COUNTER	An attribute of the Emotiv EPOC neuroheadset. Refer to www.emotiv.com for more information.
ED Interpolated	ED_INTERPOLATED	An attribute of the Emotiv EPOC neuroheadset. Refer to www.emotiv.com for more information.
ED Raw CQ	ED_RAW_CQ	An attribute of the Emotiv EPOC neuroheadset. Refer to www.emotiv.com for more information.
ED AF3	ED_AF3	An attribute of the Emotiv EPOC neuroheadset. Refer to www.emotiv.com for more information.
EE Chan F7	EE_CHAN_F7	An attribute of the Emotiv EPOC neuroheadset. Refer to www.emotiv.com for more information.
EE Chan F3	EE_CHAN_F3	An attribute of the Emotiv EPOC neuroheadset. Refer to www.emotiv.com for more information.
EE Chan FC5	EE_CHAN_FC5	An attribute of the Emotiv EPOC neuroheadset. Refer to www.emotiv.com for more information.
EE Chan T7	EE_CHAN_T7	An attribute of the Emotiv EPOC neuroheadset. Refer to www.emotiv.com for more information.
EE Chan P7	EE_CHAN_P7	An attribute of the Emotiv EPOC neuroheadset. Refer to www.emotiv.com for more information.
EE Chan O1	EE_CHAN_O1	An attribute of the Emotiv EPOC neuroheadset. Refer to www.emotiv.com for more information.
EE Chan O2	EE_CHAN_O2	An attribute of the Emotiv EPOC neuroheadset. Refer to www.emotiv.com for more information.
EE Chan P8	EE_CHAN_P8	An attribute of the Emotiv EPOC neuroheadset. Refer to www.emotiv.com for more information.
EE Chan T8	EE_CHAN_T8	An attribute of the Emotiv EPOC neuroheadset. Refer to www.emotiv.com for more information.
EE Chan FC6	EE_CHAN_FC6	An attribute of the Emotiv EPOC neuroheadset. Refer to www.emotiv.com for more information.
EE Chan F4	EE_CHAN_F4	An attribute of the Emotiv EPOC neuroheadset. Refer to www.emotiv.com for more information.
EE Chan F8	EE_CHAN_F8	An attribute of the Emotiv EPOC neuroheadset. Refer to www.emotiv.com for more information.
ED AF4	ED_AF4	An attribute of the Emotiv EPOC neuroheadset. Refer to www.emotiv.com for more information.
ED Gyro X	ED_GYROX	An attribute of the Emotiv EPOC neuroheadset. Refer to www.emotiv.com for more information.
ED Gyro Y	ED_GYROY	An attribute of the Emotiv EPOC neuroheadset. Refer to www.emotiv.com for more information.
ED Timestamp	ED_TIMESTAMP	An attribute of the Emotiv EPOC neuroheadset. Refer to www.emotiv.com for more information.
ED ES Timestamp	ED_ES_TIMESTAMP	An attribute of the Emotiv EPOC neuroheadset. Refer to www.emotiv.com for more information.
ED Function ID	ED_FUNC_ID	An attribute of the Emotiv EPOC neuroheadset. Refer to www.emotiv.com for more information.
ED Function Value	ED_FUNC_VALUE	An attribute of the Emotiv EPOC neuroheadset. Refer to www.emotiv.com for more information.
ED Marker	ED_MARKER	An attribute of the Emotiv EPOC neuroheadset. Refer to www.emotiv.com for more information.
ED Sync Signal	ED_SYNC_SIGNAL	An attribute of the Emotiv EPOC neuroheadset. Refer to www.emotiv.com for more information.
OS3D BITMASK	OS3D_BITMASK	An attribute of the Inertial Labs OS3D-GS orientation sensor. Refer to www.inertiallabs.com for more information.
OS3D FRAME COUNTER	OS3D_FRAME_COUNTER	An attribute of the Inertial Labs OS3D-GS orientation sensor. Refer to www.inertiallabs.com for more information.
OS3D RAW ACC	OS3D_RAW_ACC	An attribute of the Inertial Labs OS3D-GS orientation sensor. Refer to www.inertiallabs.com for more information.
OS3D RAW GYR	OS3D_RAW_GYR	An attribute of the Inertial Labs OS3D-GS orientation sensor. Refer to www.inertiallabs.com for more information.
OS3D RAW MAG	OS3D_RAW_MAG	An attribute of the Inertial Labs OS3D-GS orientation sensor. Refer to www.inertiallabs.com for more information.
OS3D RAW TEMP	OS3D_RAW_TEMP	An attribute of the Inertial Labs OS3D-GS orientation sensor. Refer to www.inertiallabs.com for more information.
OS3D CAL ACC	OS3D_CAL_ACC	An attribute of the Inertial Labs OS3D-GS orientation sensor. Refer to www.inertiallabs.com for more information.
OS3D CAL GYR	OS3D_CAL_GYR	An attribute of the Inertial Labs OS3D-GS orientation sensor. Refer to www.inertiallabs.com for more information.
OS3D CAL MAG	OS3D_CAL_MAG	An attribute of the Inertial Labs OS3D-GS orientation sensor. Refer to www.inertiallabs.com for more information.
QUAT X	QUAT_X	A quaternion X value.
QUAT Y	QUAT_Y	A quaternion Y value.
QUAT Z	QUAT_Z	A quaternion Z value.
QUAT W	QUAT_W	A quaternion W value.
QUAT X Relative	QUAT_X_REL	A relative quaternion X value.
QUAT Y Relative	QUAT_Y_REL	A relative quaternion Y value.
QUAT Z Relative	QUAT_Z_REL	A relative quaternion Z value.
QUAT W Relative	QUAT_W_REL	A relative quaternion W value.
Dropped Packet Count	DROPPED_PACKET_COUNT	A counter for the number of dropped packets.
Roll Degrees	ROLL_DEG	A roll value in degrees
Pitch Degrees	PITCH_DEG	A pitch value in degrees
Yaw Degrees	YAW_DEG	A yaw value in degrees
Roll Relative Degrees	ROLL_DEG_REL	A roll value in degrees relative to some value
Pitch Relative Degrees	PITCH_DEG_REL	A pitch value in degrees relative to some value
Yaw Relative Degrees	YAW_DEG_REL	A yaw value in degrees relative to some value
HEART RATE	HEART_RATE	An attribute of the Zephyr Technologies BioHarness sensor. Refer to http://www.zephyr-technology.com/products/bioharness-3/ for more information.
RESPIRATION RATE	RESPIRATION_RATE	An attribute of the Zephyr Technologies BioHarness sensor. Refer to http://www.zephyr-technology.com/products/bioharness-3/ for more information.
SKIN TEMPERATURE	SKIN_TEMPERATURE	An attribute of the Zephyr Technologies BioHarness sensor. Refer to http://www.zephyr-technology.com/products/bioharness-3/ for more information.
POSTURE	POSTURE	An attribute of the Zephyr Technologies BioHarness sensor. Refer to http://www.zephyr-technology.com/products/bioharness-3/ for more information.
HEAD POSE	HEAD_POSE
HEAD POSE ROT	HEAD_POSE_ROT
POSTURE TYPE	POSTURE_TYPE
ACTIVITY TYPE	ACTIVITY_TYPE
ATTENTION TYPE	ATTENTION_TYPE
ATTENTION VALUE	ATTENTION_VALUE
ENGAGEMENT TYPE	ENGAGEMENT_TYPE
ENGAGEMENT VALUE	ENGAGEMENT_VALUE
HORIZONTAL GAZE	HORIZONTAL_GAZE
VERTICAL GAZE	VERTICAL_GAZE
GAZE DIRECTION	GAZE_DIRECTION
LEFT HAND POSE	LEFT_HAND_POSE
LEFT HAND POSE ROT	LEFT_HAND_POSE_ROT
LEFT HAND POSE TYPE	LEFT_HAND_POSE_TYPE
RIGHT HAND POSE	RIGHT_HAND_POSE
RIGHT HAND POSE ROT	RIGHT_HAND_POSE_ROT
RIGHT HAND POSE TYPE	RIGHT_HAND_POSE_TYPE
HEAD	HEAD
CENTER HIP	CENTER_HIP
CENTER SHOULDER	CENTER_SHOULDER
LEFT ANKLE	LEFT_ANKLE
LEFT ELBOW	LEFT_ELBOW
LEFT FOOT	LEFT_FOOT
LEFT HAND	LEFT_HAND
LEFT HIP	LEFT_HIP
LEFT KNEE	LEFT_KNEE
LEFT SHOULDER	LEFT_SHOULDER
LEFT WRIST	LEFT_WRIST
RIGHT ANKLE	RIGHT_ANKLE
RIGHT ELBOW	RIGHT_ELBOW
RIGHT FOOT	RIGHT_FOOT
RIGHT HAND	RIGHT_HAND
RIGHT HIP	RIGHT_HIP
RIGHT KNEE	RIGHT_KNEE
RIGHT SHOULDER	RIGHT_SHOULDER
RIGHT WRIST	RIGHT_WRIST
SPINE	SPINE
TOP SKULL	TOP_SKULL
TOP RIGHT FOREHEAD	TOP_RIGHT_FOREHEAD
MIDDLE TOP DIP UPPER LIP	MIDDLE_TOP_DIP_UPPER_LIP
ABOVE CHIN	ABOVE_CHIN
BOTTOM OF CHIN	BOTTOM_OF_CHIN
RIGHT OF RIGHT EYEBROW	RIGHT_OF_RIGHT_EYEBROW
MIDDLE TOP OF RIGHT EYEBROW	MIDDLE_TOP_OF_RIGHT_EYEBROW
LEFT OF RIGHT EYEBROW	LEFT_OF_RIGHT_EYEBROW
MIDDLE BOTTOM OF RIGHT EYEBROW	MIDDLE_BOTTOM_OF_RIGHT_EYEBROW
ABOVE MID UPPER RIGHT EYELID	ABOVE_MID_UPPER_RIGHT_EYELID
OUTER CORNER OF RIGHT EYE	OUTER_CORNER_OF_RIGHT_EYE
MIDDLE TOP RIGHT EYELID	MIDDLE_TOP_RIGHT_EYELID
MIDDLE BOTTOM RIGHT EYELID	MIDDLE_BOTTOM_RIGHT_EYELID
INNER CORNER RIGHT EYE	INNER_CORNER_RIGHT_EYE
UNDER MID BOTTOM RIGHT EYELID	UNDER_MID_BOTTOM_RIGHT_EYELID
RIGHT SIDE OF CHIN	RIGHT_SIDE_OF_CHIN
OUTSIDE RIGHT CORNER MOUTH	OUTSIDE_RIGHT_CORNER_MOUTH
RIGHT OF CHIN	RIGHT_OF_CHIN
RIGHT TOP DIP UPPER LIP	RIGHT_TOP_DIP_UPPER_LIP
TOP LEFT FOREHEAD	TOP_LEFT_FOREHEAD
MIDDLE TOP LOWER LIP	MIDDLE_TOP_LOWER_LIP
MIDDLE BOTTOM LOWER LIP	MIDDLE_BOTTOM_LOWER_LIP
LEFT OF LEFT EYEBROW	LEFT_OF_LEFT_EYEBROW
MIDDLE TOP OF LEFT EYEBROW	MIDDLE_TOP_OF_LEFT_EYEBROW
RIGHT OF LEFT EYEBROW	RIGHT_OF_LEFT_EYEBROW
MIDDLE BOTTOM OF LEFT EYEBROW	MIDDLE_BOTTOM_OF_LEFT_EYEBROW
ABOVE MID UPPER LEFT EYELID	ABOVE_MID_UPPER_LEFT_EYELID
OUTER CORNER OF LEFT EYE	OUTER_CORNER_OF_LEFT_EYE
MIDDLE TOP LEFT EYELID	MIDDLE_TOP_LEFT_EYELID
MIDDLE BOTTOM LEFT EYELID	MIDDLE_BOTTOM_LEFT_EYELID
INNER CORNER LEFT EYE	INNER_CORNER_LEFT_EYE
UNDER MID BOTTOM LEFT EYELID	UNDER_MID_BOTTOM_LEFT_EYELID
LEFT SIDE OF CHEEK	LEFT_SIDE_OF_CHEEK
OUTSIDE LEFT CORNER MOUTH	OUTSIDE_LEFT_CORNER_MOUTH
LEFT OF CHIN	LEFT_OF_CHIN
LEFT TOP DIP UPPER LIP	LEFT_TOP_DIP_UPPER_LIP
OUTER TOP RIGHT PUPIL	OUTER_TOP_RIGHT_PUPIL
OUTER BOTTOM RIGHT PUPIL	OUTER_BOTTOM_RIGHT_PUPIL
OUTER TOP LEFT PUPIL	OUTER_TOP_LEFT_PUPIL
OUTER BOTTOM LEFT PUPIL	OUTER_BOTTOM_LEFT_PUPIL
INNER TOP RIGHT PUPIL	INNER_TOP_RIGHT_PUPIL
INNER BOTTOM RIGHT PUPIL	INNER_BOTTOM_RIGHT_PUPIL
INNER TOP LEFT PUPIL	INNER_TOP_LEFT_PUPIL
INNER BOTTOM LEFT PUPIL	INNER_BOTTOM_LEFT_PUPIL
RIGHT TOP UPPER LIP	RIGHT_TOP_UPPER_LIP
LEFT TOP UPPER LIP	LEFT_TOP_UPPER_LIP
RIGHT BOTTOM UPPER LIP	RIGHT_BOTTOM_UPPER_LIP
LEFT BOTTOM UPPER LIP	LEFT_BOTTOM_UPPER_LIP
RIGHT TOP LOWER LIP	RIGHT_TOP_LOWER_LIP
LEFT TOP LOWER LIP	LEFT_TOP_LOWER_LIP
RIGHT BOTTOM LOWER LIP	RIGHT_BOTTOM_LOWER_LIP
LEFT BOTTOM LOWER LIP	LEFT_BOTTOM_LOWER_LIP
MIDDLE BOTTOM UPPER LIP	MIDDLE_BOTTOM_UPPER_LIP
LEFT CORNER MOUTH	LEFT_CORNER_MOUTH
RIGHT CORNER MOUTH	RIGHT_CORNER_MOUTH
BOTTOM OF RIGHT CHEEK	BOTTOM_OF_RIGHT_CHEEK
BOTTOM OF LEFT CHEEK	BOTTOM_OF_LEFT_CHEEK
ABOVE THREE FOURTH RIGHT EYELID	ABOVE_THREE_FOURTH_RIGHT_EYELID
ABOVE THREE FOURTH LEFT EYELID	ABOVE_THREE_FOURTH_LEFT_EYELID
THREE FOURTH TOP RIGHT EYELID	THREE_FOURTH_TOP_RIGHT_EYELID
THREE FOURTH TOP LEFT EYELID	THREE_FOURTH_TOP_LEFT_EYELID
THREE FOURTH BOTTOM RIGHT EYELID	THREE_FOURTH_BOTTOM_RIGHT_EYELID
THREE FOURTH BOTTOM LEFT EYELID	THREE_FOURTH_BOTTOM_LEFT_EYELID
BELOW THREE FOURTH RIGHT EYELID	BELOW_THREE_FOURTH_RIGHT_EYELID
BELOW THREE FOURTH LEFT EYELID	BELOW_THREE_FOURTH_LEFT_EYELID
ABOVE ONE FOURTH RIGHT EYELID	ABOVE_ONE_FOURTH_RIGHT_EYELID
ABOVE ONE FOURTH LEFT EYELID	ABOVE_ONE_FOURTH_LEFT_EYELID
ONE FOURTH TOP RIGHT EYELID	ONE_FOURTH_TOP_RIGHT_EYELID
ONE FOURTH TOP LEFT EYELID	ONE_FOURTH_TOP_LEFT_EYELID
ONE FOURTH BOTTOM RIGHT EYELID	ONE_FOURTH_BOTTOM_RIGHT_EYELID
ONE FOURTH BOTTOM LEFT EYELID	ONE_FOURTH_BOTTOM_LEFT_EYELID
COLOR CHANNEL	COLOR_CHANNEL
DEPTH CHANNEL	DEPTH_CHANNEL

Sensor State¶

Element Name	Element Value	Description
Ready	READY
Running	RUNNING
Stopped	STOPPED

Sensor Type¶

Element Name	Element Value	Description
Temperature/Humidity	TEMP_HUMIDITY
GSR	GSR
Sinewave	SINEWAVE
Self Assessment	SELF_ASSESSMENT
Temperature Humidity Mouse Surrogate	MOUSE_TEMP_HUMIDITY_SURROGATE
Temperature Humidity Mouse	MOUSE_TEMP_HUMIDITY
Mouse Event	MOUSE_EVENT
Emotiv Composer	EMOTIV_COMPOSER
Emotiv	EMOTIV
VHT Multisense	VHT_Multisense
Kinect	KINECT
OS3D	OS3D	The Inertial Labs OS3D-GS orientation sensor. Refer to www.inertiallabs.com for more information.
BioHarness	BIOHARNESS	The Zephyr Technologies BioHarness 3 sensor. Refer to http://www.zephyr-technology.com/products/bioharness-3/ for more information.
Motivation Surrogate	MOTIVATION_SURROGATE
Expertise Surrogate	EXPERTISE_SURROGATE

Siman Type¶

Element Name	Element Value	Description
Load	Load
Start	Start
Stop	Stop
Pause	Pause
Resume	Resume

Survey Property Key¶

Element Name	Element Value	Description
Question Image	Question_Image
Question Image Position	Question_Image_Position
Question Image Width	Question_Image_Width
Is Answer Field Text Box	Is_Answer_Field_Text_Box
Column Options	Column_Options
Row Options	Row_Options
Column Width	Column_Width
Reply Option Set	Reply_Option_Set
Minimum Selections Required	Minimum_Selections_Required
Maximum Selections Allowed	Maximum_Selections_Allowed
Scale Image URI	Scale_Image_Uri
Hide Reply Option Labels	Hide_Reply_Option_Labels
Display Scale Labels	Display_Scale_Labels
Left Label	Left_Extreme_Label
Right Label	Right_Extreme_Label
Mid Point Label	Mid_Point_Label
Correct Answer	Correct_Answer
CLS Question Priority	CLS_Question_Priority
Use Bar Layout	Use_Bar_Layout
Scorers	Scorers
Survey Item Scales	Survey_Item_Scales
Answer Weights	Answer_Weights
Hide Survey Name	Hide_Survey_Name
Hide Survey Question Numbers	Hide_Survey_Question_Numbers
Hide Survey Page Numbers	Hide_Survey_Page_Numbers
Survey Next Page Button Label	Survey_Next_Page_Button_Label
Survey Next Page Button Label	Survey_Complete_Survey_Button_Label
Survey Go Back Enabled	Survey_Go_Back_Enabled
Randomize	Randomize
Help String	Help_String
Text	Text
Required	Required
Range	ValueBounds

Question Type¶

Element Name	Element Value	Description
Fill In The Blank	FillInTheBlank
Multiple Choice	MultipleChoice
Rating Scale	RatingScale
Matrix Of Choices	MatrixOfChoices
Slider Bar	SliderBar

Understanding Level¶

Element Name	Element Value	Description
Unknown	Unknown
Low	Low
Medium	Medium
High	High

Weapon Control Status¶

Element Name	Element Value	Description
Hold	Hold
Tight	Tight
Free	Free
